Surface 604

Surface 604 V Rook

Surface 604 V Rook


If you are interesting in purchasing this bike, please contact us directly. Due to dealer agreements bikes cannot be purchased online or shipped.

Regular price $3,499.00 NZD
Regular price Sale price $3,499.00 NZD
Flash Sale Contact us
Tax included.

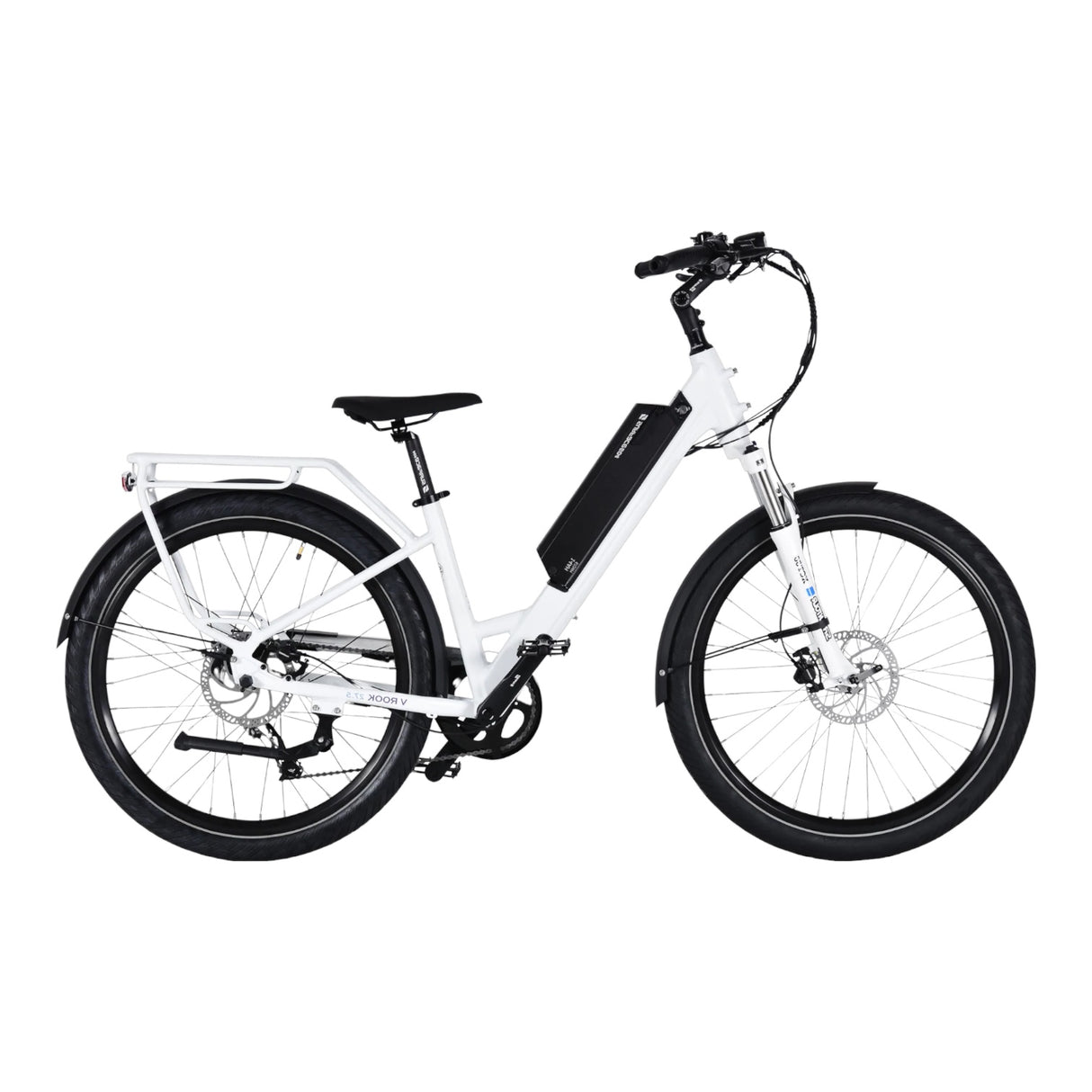

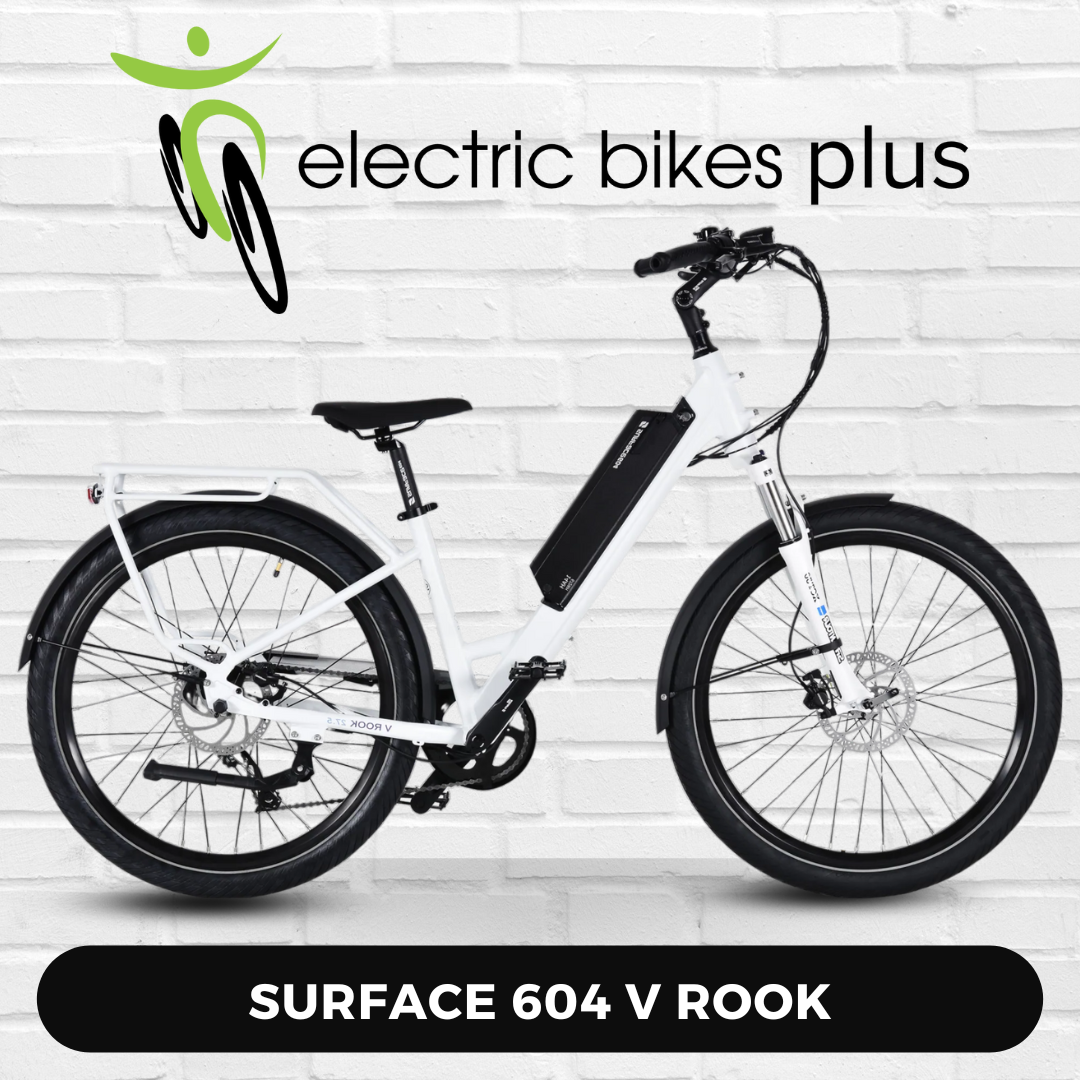

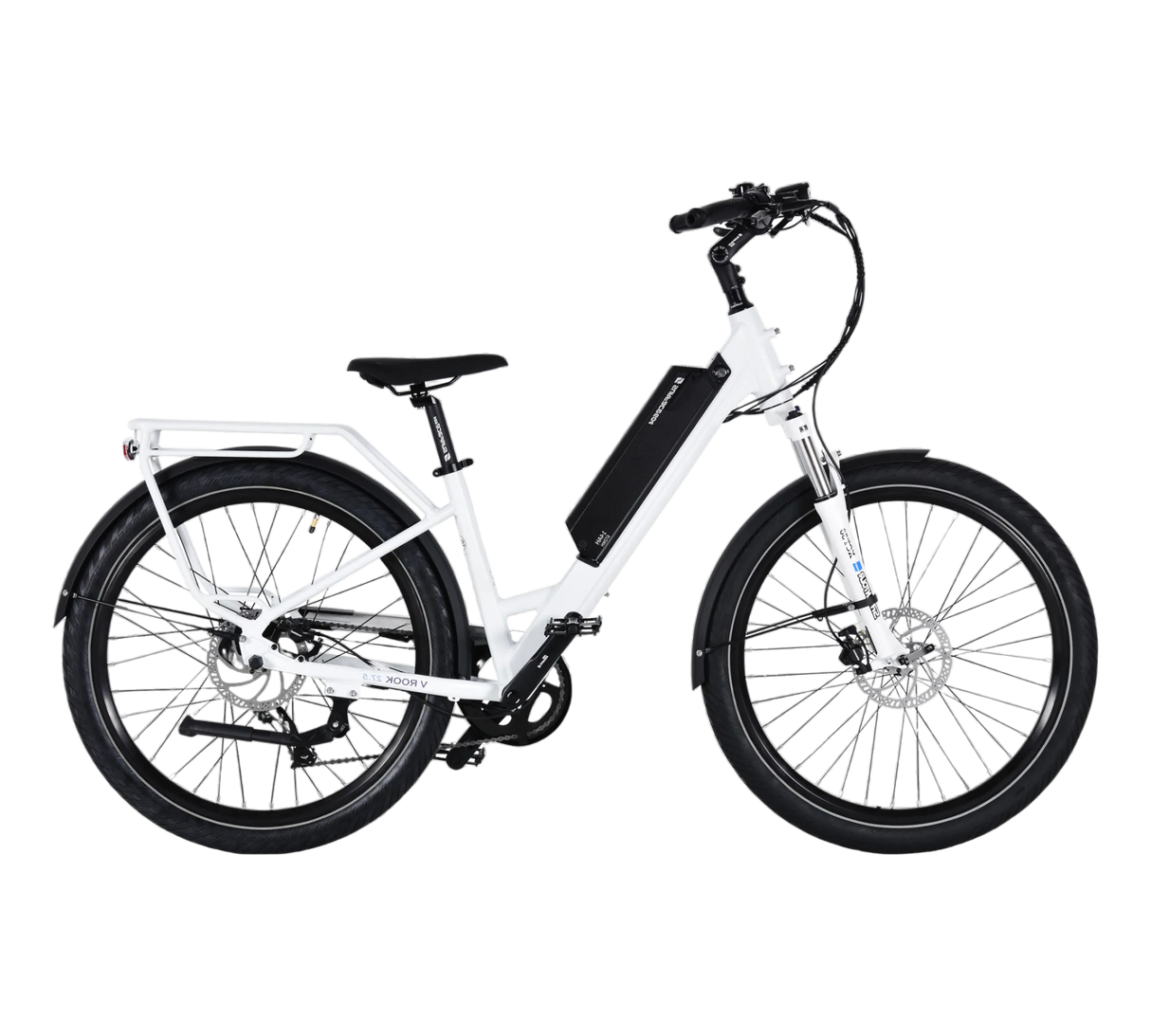

Introducing the Surface 604’s V-Rook!
A feature-rich and approachable step-through city bike, available in two battery sizes and two colours. It comes standard with rear rack, mudguards and a new Büchel Shiny 120 ebike LED headlight making it perfect for the shops and cruising around the city!

A rare combination of a torque sensor with a rear hub 48V motor gives a smooth and responsive riding experience where the power output is matched with the force applied to the pedals, while the combination of a Suntour suspension fork, Selle Royal "Essenza Plus" saddle, ergonomic grips and the upright riding position provides a high level of comfort.

The Rook has solid stopping power with the 180mm rotors and dual-piston callipers for increased safety.



Re-designed handlebar. Swept-back, cruiser design for a more comfortable riding position. 710mm wide, 30mm rise, 45 degree sweep.


Selle Royal "Essenza Plus" saddle. Designed for city and tour use. Adjustable up to 9 degrees.


Redesigned headlight positioning and a new Büchel Shiny 120 ebike LED headlight with 120 lumens.


SURFACE604 Display Updated Software: Select your desired pedal assist range, adjustable torque settings, bug fixes, and more.


World class torque sensing pedal assist - because an electric bike is only as good as it’s power distribution.

Precision torque sensing performance at 104 cadence pulses per revolution; 1,000 torque samples per second.

Rook’s incredibly smooth torque sensor knows how hard you’re pedaling down to the microsecond and matches it with proportionate power.

Custom drop out design delivers whisper smooth assist at any level.


48V 500W electric motor purpose built for speed and power. Enjoy the quiet and consistent power distribution at any speed.

Geared for performance - we paired all that power with an industry-leading 12mosfet 25A controller giving the Shred unmatched torque and speed.

Leave other riders envious as you effortless fly past


Offering two high-capacity battery options:

48V14ah (672wh) 3500mah cell size, Samsung Cells 18650, Made in Korea, USB Plug, capacity indicator button, Range up to 45 Miles (72 Kms), Weight: 7.59 LBS (3.45 KG)

48V20ah (960wh) 5000mah cell size, (Same as in Tesla), Samsung Cells 21700, Made in Korea, USB Plug, capacity indicator button, Range up to 65 Miles (105 Kms), Weight: 10.23 LBS (4.65 KG)
