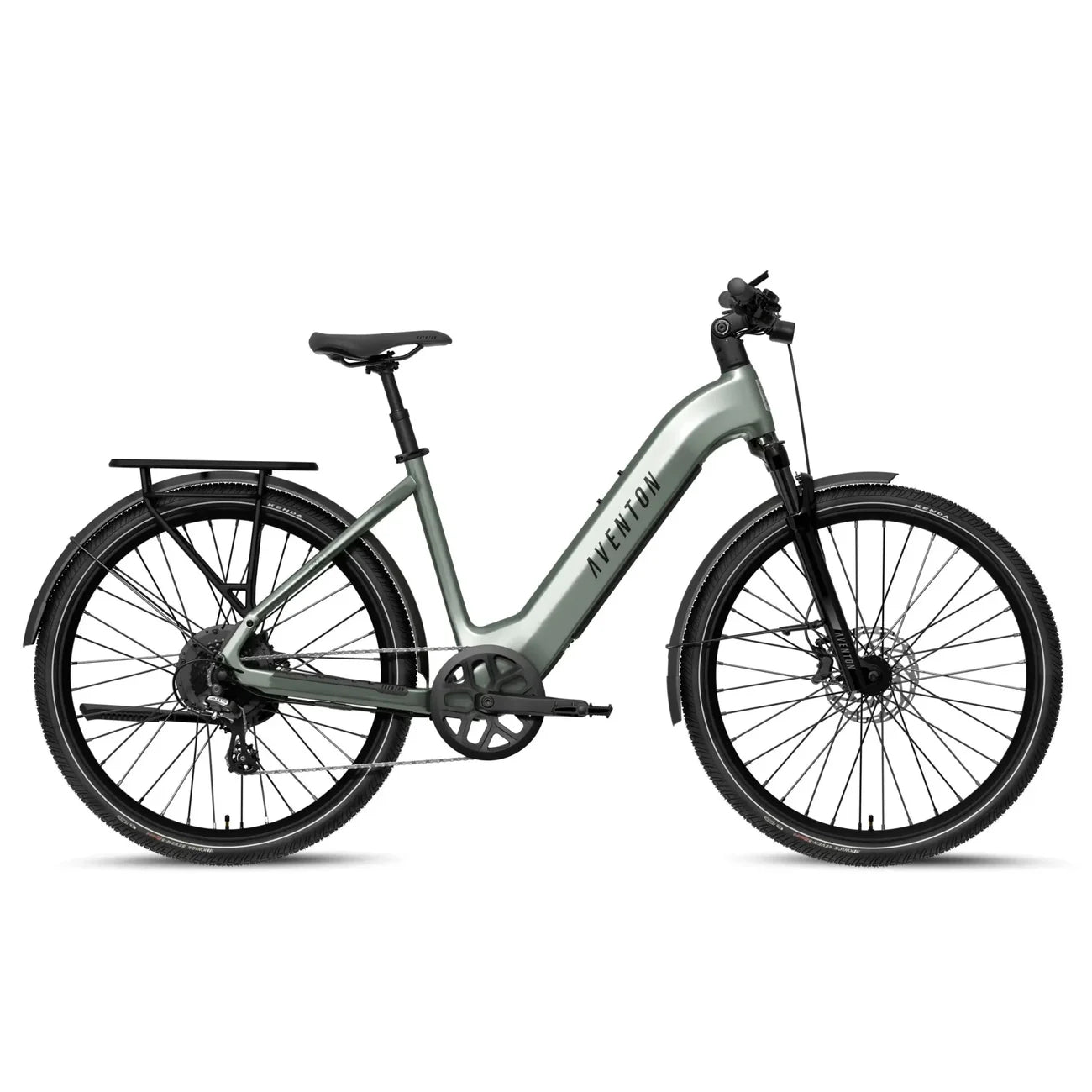

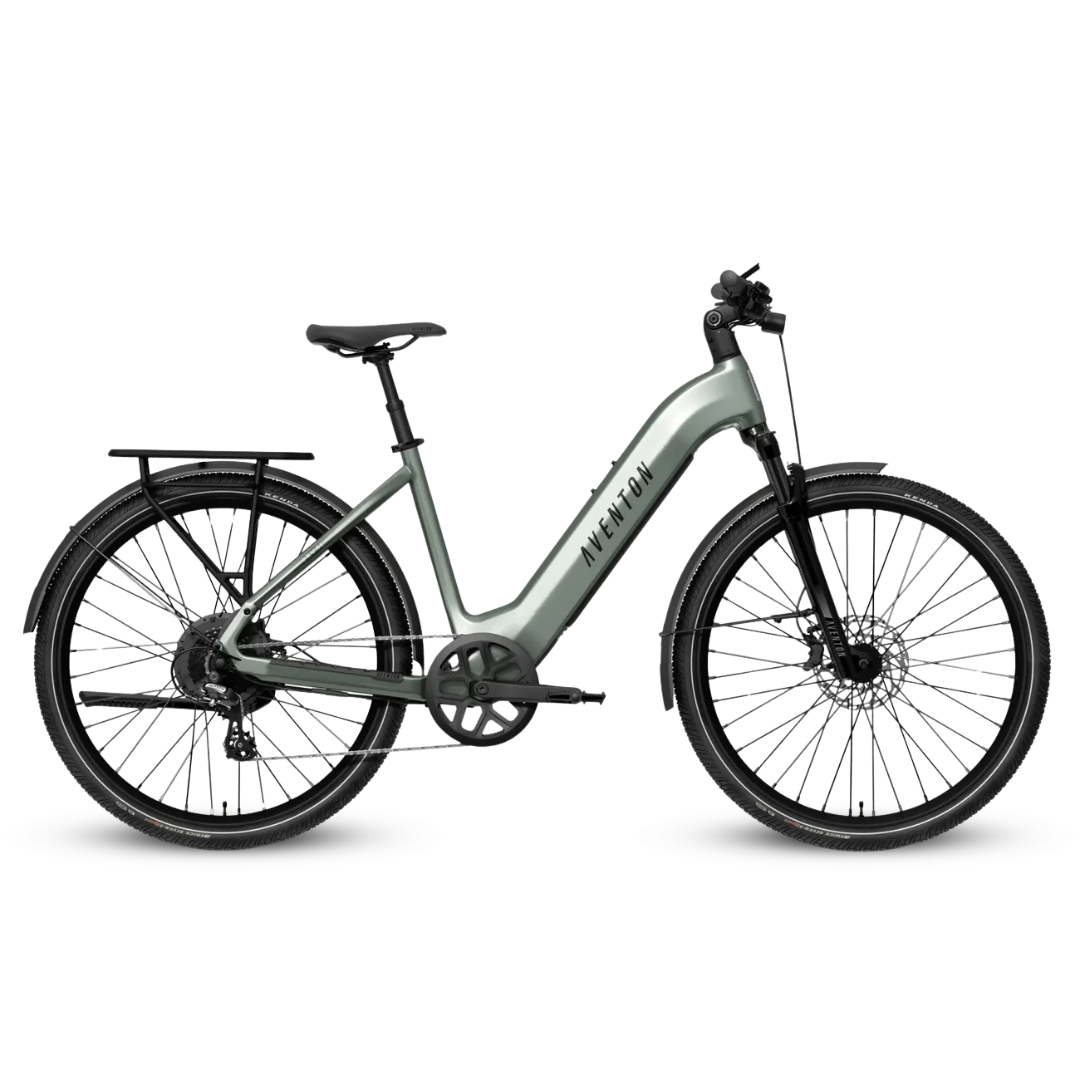

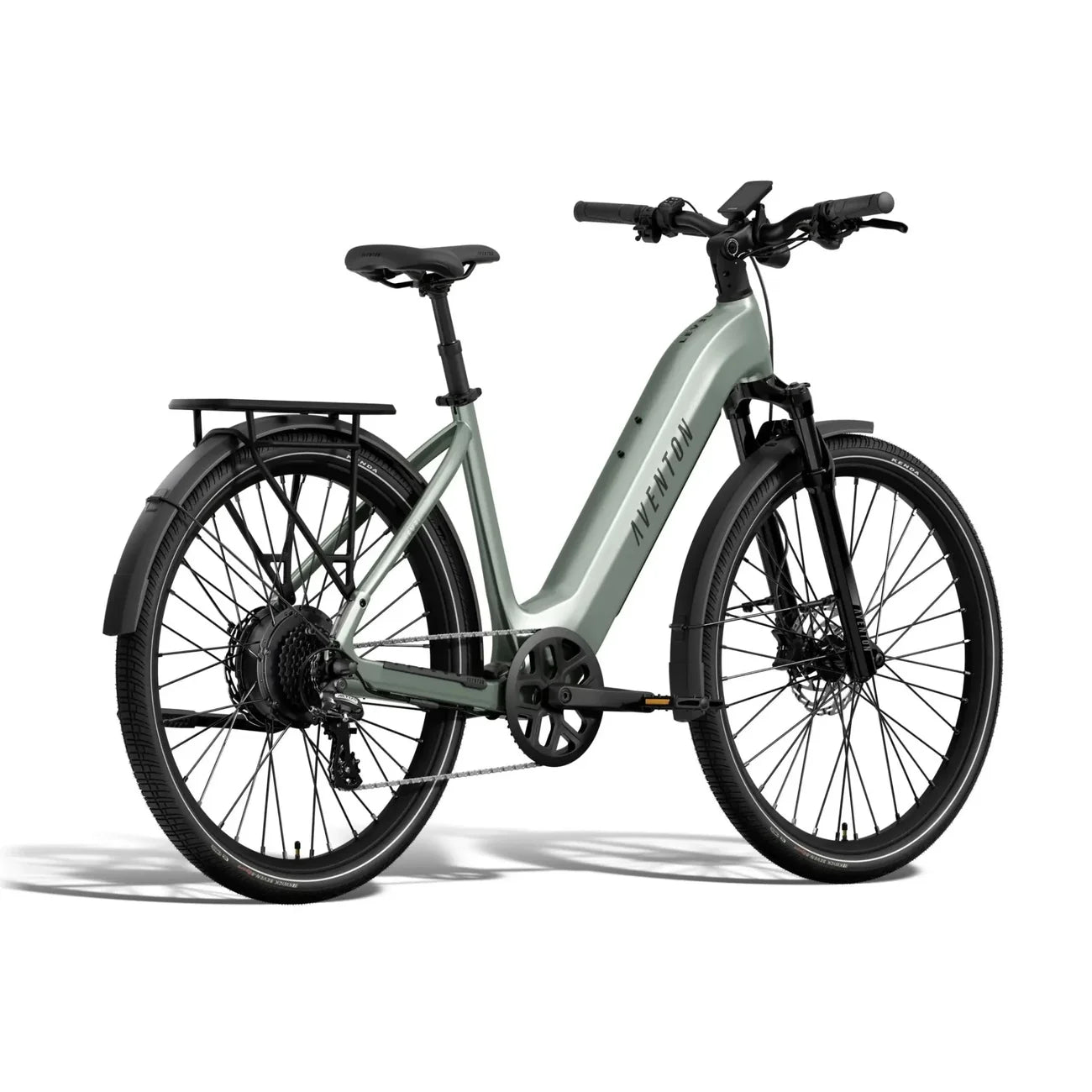

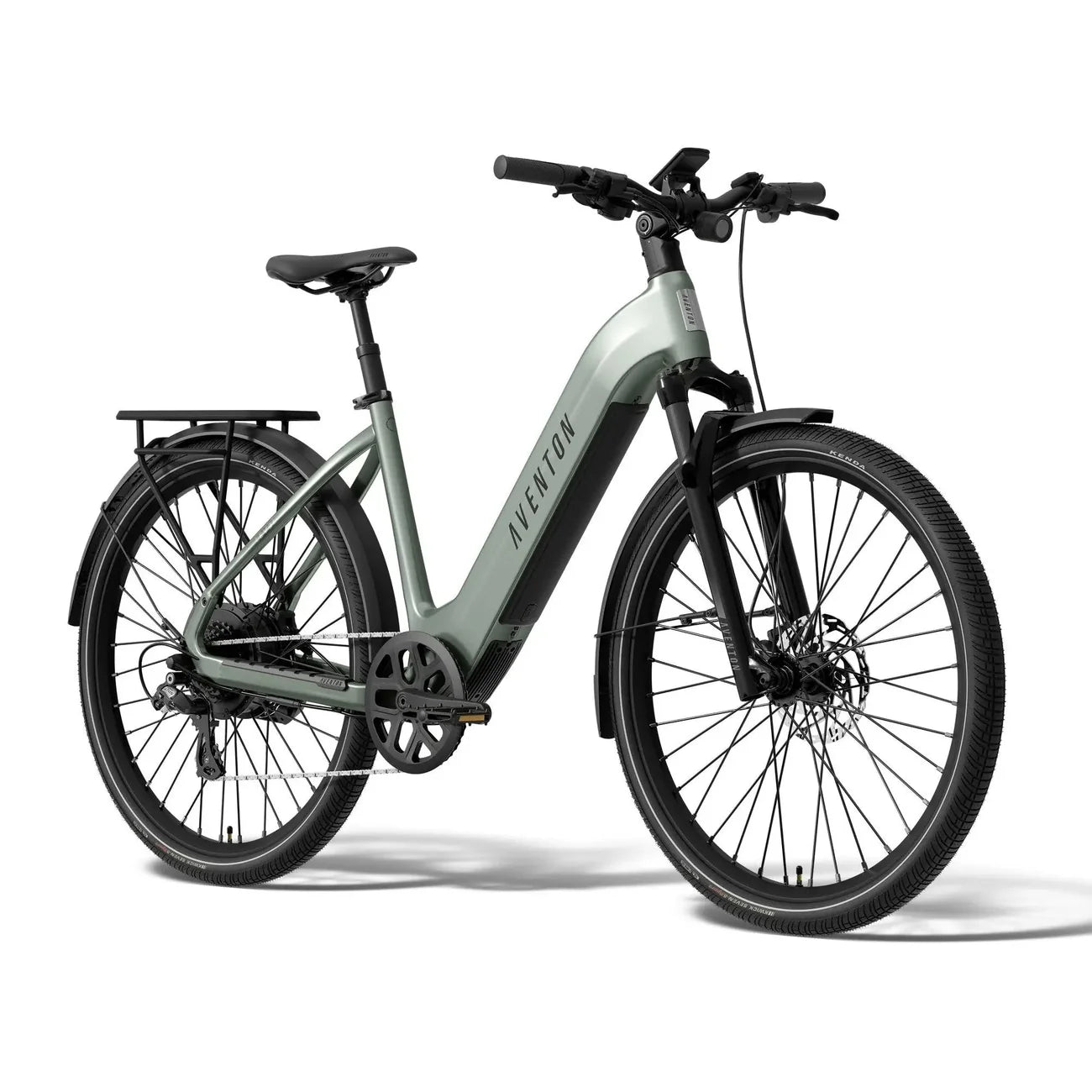

Aventon Level 4 REC Step-Through

The Aventon Level 4 REC builds on Aventon’s legacy as a trusted, accessible commuter option, pairing a hub motor with up to 130 km of range for dependable, all-weather transportation. It’s built for riders who value simplicity, confidence, and everyday utility, offering strong acceleration for city streets, comfortable suspension for longer rides, and intuitive connectivity for security and peace of mind. With its combination of power, practicality, and affordability, the Level REC is the perfect balance of comfort and capability for riders who just want a bike that works every time they need it.

†Certain features of this electric bike require a 4G data connection. A complimentary 4G connection subscription is included for the first year, beginning from the product service registration date.

E-System

• Motor: Aventon Hub Drive, 80Nm (96Nm in Boost Mode), 1188W Peak (1440W Peak in Boost Mode)
• Battery: Removable Internal Lithium-ion, 36V, 20Ah, 733Wh, LG 21700 cells, 3.9kg
• Display: Aventon A280
• Charger: 42V 4A Charger / 0-100% approx. 5 hours
• Throttle: Included
• Smart Features: Regenerative
  Braking, Ride Tune, 4G/GPS, Unusual Activity Detection, E-Lock, Hold Mode, Remote Notification
• Lights: Integrated Front & Rear

Frame & Suspension

• Frame: 6061 Aluminum
• Fork: 80mm Travel /
  Adjustable Coil Spring with Preload Adjustment and Lockout / 15x100mm Thru Axle / 43mm Offset
• Rear Spacing: 148mm
• Fork Spacing: 100mm

Cockpit & Seatpost

• Handlebar: Aluminum 31.8mm, 680mm
• Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel
• Seatpost Clamp: 34.9mm
• Saddle: Aventon Saddle
• Grips: Aventon Lock-on Grips

Brakes & Wheels

• Front Brake: Tektro HD-E3120 Hydraulic Disc, EJ1 quick disconnect wire (850mm)
• Rear Brake: Tektro HD-E3520 2-Piston Hydraulic Disc, E-Cutoff
• Brake Rotors: 180mm, 6-Bolt (Front & Rear)
• Front Wheel: 27.5" Double Wall Aluminum, 36H, 15x100mm Thru Axle
• Rear Wheel: 27.5" Double Wall Aluminum, Nutted Axle Hub Motor
• Tyres: Kenda Kwick Seven-5 Sport 27.5" x 2.2"

Drivetrain

• Shifter: Shimano 8-Speed Trigger
• Derailleur: Shimano Altus RD-M310
• Crankset: 165mm
• Chain: 7/8 speed, 120L
• Cassette: Shimano CS-HG200-8, 8-Speed, 12-32T
• Chainring: 48T
• Bottom Bracket: Square Tapered, Sealed, Double Sided Torque Sensor, 83mm x 158.5mm
• Pedals: 9/16" Composite Platform

Weight & Misc

• Weight: 31.1kg
• Total Weight Limit: 136kg
• Water Resistance: Bike IPX5 / Components IPX6
• Rider Height: Regular 150cm-170cm / Large 170cm-185cm
• Range: Up to 121km
