AMFLOW PR Carbon (Gen 2)
per week with
Q-Card
(based on selected term)
Cash price: $8,599.00
Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply.
AMFLOW PR Carbon (Gen 2) - Medium is backordered and will ship as soon as it is back in stock.
AMFLOW PR Carbon (Gen 2)
AMFLOW PR Carbon (Gen 2) - Medium is backordered and will ship as soon as it is back in stock.
Description
Description
⚠️LIMITED STOCK ALLOCATION⚠️
PRE ORDER YOURS TODAY
Stock inbound Awaiting Arrival Date!

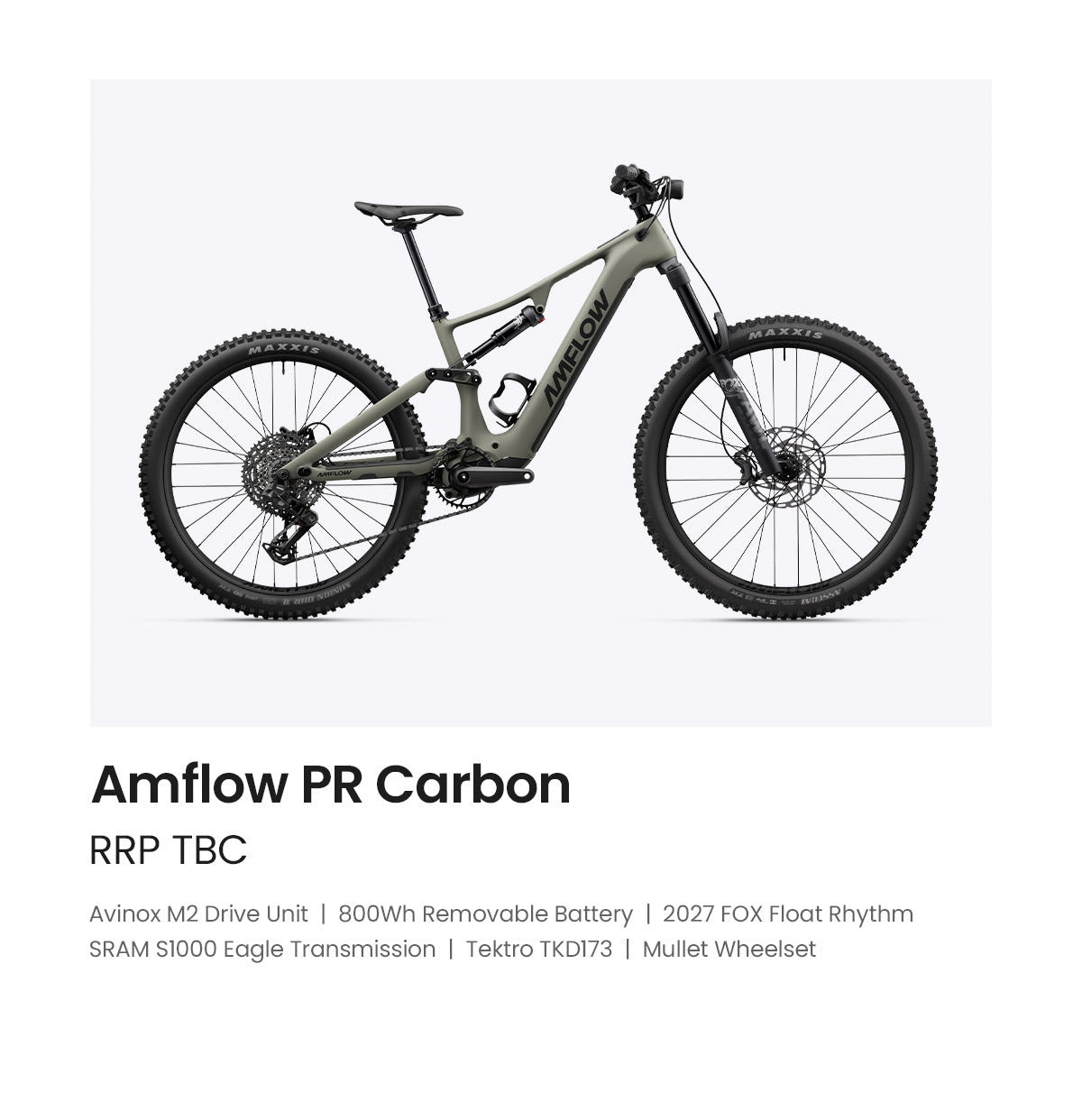

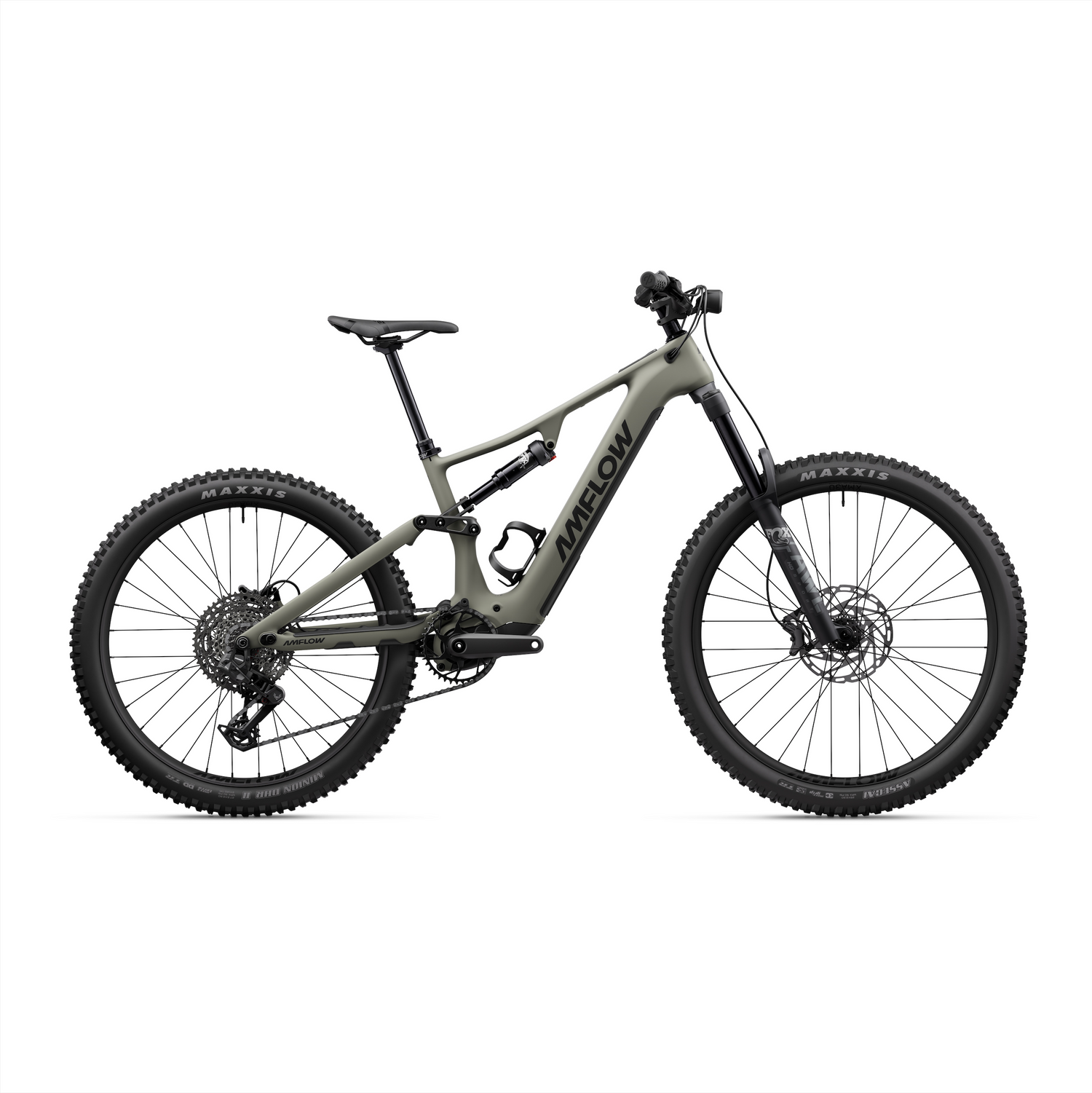

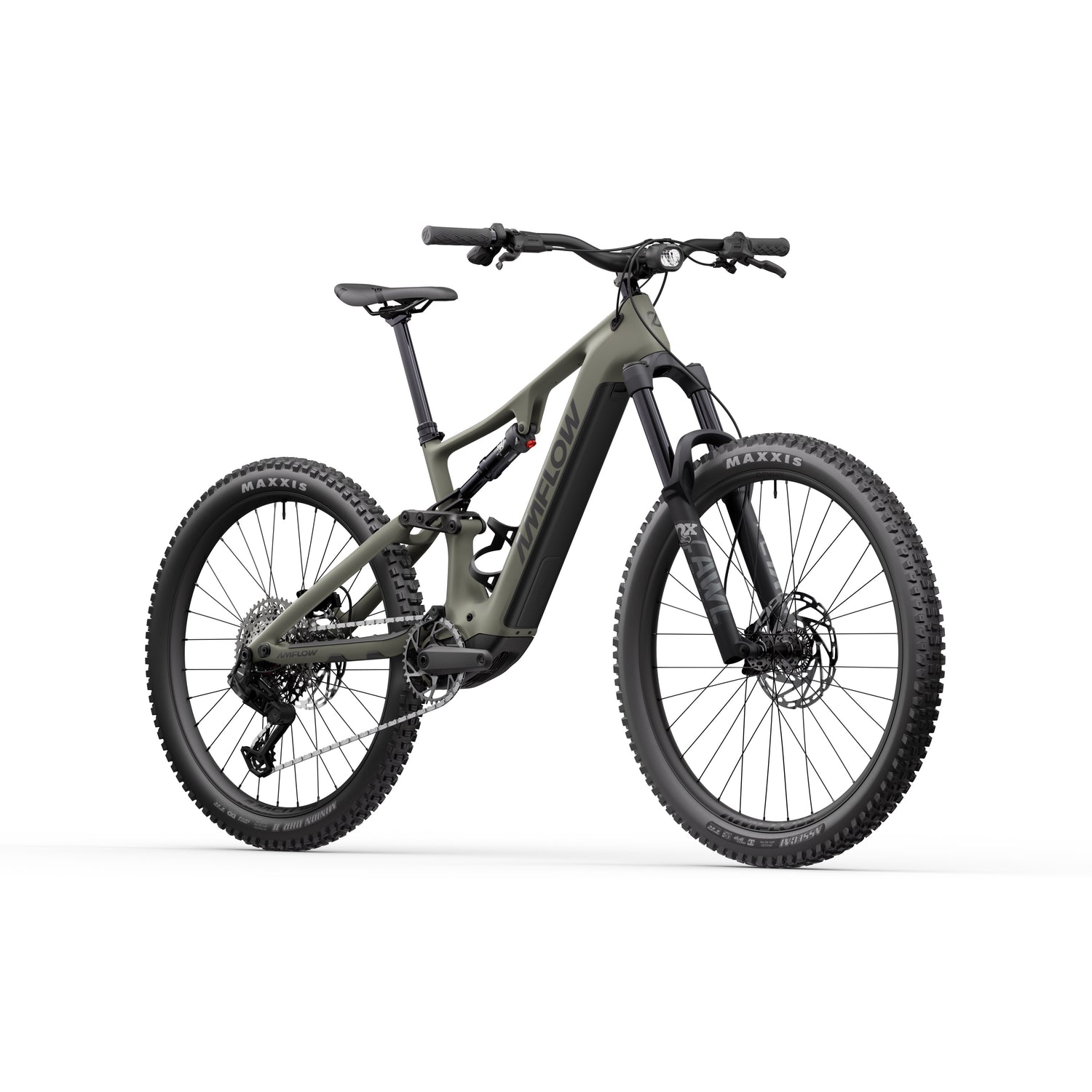

AMFLOW PR Carbon Electric Mountain Bike
Take on bigger terrain with confidence on the AMFLOW PR Carbon — a powerful, long-range electric mountain bike built for riders who want maximum capability, adaptability, and cutting-edge technology.
Constructed with a full carbon fibre frame, the PR Carbon strikes a balance between strength and weight, delivering responsive handling on technical trails while remaining durable under demanding conditions. At its core is the Avinox drive system, producing up to 150 Nm of torque (on select models) for strong, controlled power across steep climbs and fast-paced riding.
The PR Carbon is designed for extended adventures, featuring a high-capacity 800 Wh removable battery. With quick-swap capability and fast charging, you can easily extend your ride time or recharge off the bike — ideal for long days or multi-ride sessions.
A highly adjustable geometry system allows you to fine-tune the bike to suit your riding style and terrain. With multiple head angle, bottom bracket, and chainstay settings, the PR offers up to 40 configuration options, giving you precise control over stability, agility, and climbing efficiency.
Premium components ensure top-level performance, including FOX suspension tuned for balance and control, powerful hydraulic disc brakes, and a mullet wheel setup for improved traction and rollover capability. The integrated drivetrain system enables smooth gear changes, even while coasting, helping maintain flow on technical terrain.
Smart features are fully integrated into the ride experience, with a built-in OLED display, GPS navigation, app connectivity, and advanced tracking features including Apple Find My compatibility. The system also supports custom assist modes and wireless controls for seamless operation on the trail.
Key Features:
- Full carbon fibre frame with responsive, durable construction
- Avinox motor system with up to 150 Nm torque (model dependent)
- 800 Wh removable battery with quick-swap capability
- Fast charging and optional dual-battery expansion
- Up to 40 adjustable geometry configurations
- FOX suspension and high-performance hydraulic disc brakes
- Mullet wheel setup (29” front / 27.5” rear)
- SmoothShift technology for seamless gear changes
- Integrated OLED display, GPS, app connectivity, and tracking
Perfect For:
Riders seeking a high-performance e-MTB with extended range, powerful assist, and advanced adjustability for aggressive trail and enduro riding.
| M | L | XL | XXL | ||
|---|---|---|---|---|---|
| A | Reach | 452mm | 475mm | 500mm | 527mm |
| B | Stack Height | 626mm | 637mm | 649mm | 662mm |
| C | Standover Height | 782.5mm | 788.9mm | 791.5mm | 799.1mm |
| D | Front Center | 787.7mm | 816mm | 846.8mm | 879.9mm |
| E | Fork Length | 576mm | 576mm | 576mm | 576mm |
| F | Wheelbase | 1227.9mm | 1256.2mm | 1287mm | 1320.1mm |
| G | Chainstay Length | 440/452mm | 440/452mm | 440/452mm | 440/452mm |
| H | Bottom Bracket Drop | 10.4/24.5mm | 10.4/24.5mm | 10.4/24.5mm | 10.4/24.5mm |
| I | Bottom Bracket Height | 349.5mm | 349.5mm | 349.5mm | 349.5mm |
| J | Effective Top Tube Length | 596.5mm | 623.5mm | 652.9mm | 684.6mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 111.4mm | 123.6mm | 136.9mm | 151.3mm |
| M | Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| N | Effective Seat Tube Angle | 77° | 76.9° | 76.7° | 76.6° |
| O | Seat Tube Height | 405mm | 425.3mm | 445mm | 464mm |
Frame |
Amflow PR Carbon Frame Moss Green 40 adjustable geometry configurations * Compatible with 27.5″ and 29″ rear wheels
|
E-Bike System |
Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m Avinox Screen: 2-inch OLED Control Display Avinox Removable Battery: 800Wh Avinox Wireless Controllers: Right and left sides Avinox Charger: 4A/168W |
Rear shock |
FOX Float Rhythm (MY 2027) custom tune, LSR adjustment, 210×55mm, air shock |
Fork |
FOX AWL HD Sport (MY 2027) 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset |
Drivetrain |
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox Shift Levers: SRAM AXS Pod Rocker Controller Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T Chain: SRAM Eagle 70 Transmission Flattop Chain Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
Brakes |
Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom Tektro Sensor Rotor (203mm, 2.3mm) |
Wheels |
Amflow XMA-30 Mullet Version Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready Spokes: SAPIM E-Light Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG |
Tires |
Front: Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR |
Handlebar |
Amflow Enduro Carbon Handlebar 40mm Rise, 800mm Width, 35mm Diameter 5-degree upsweep, 9-degree backsweep |
Grips |
Amflow Enduro Grip 2 Lock-on Grips |
Stem |
Amflow Mountain Bike Split Stem Length: 35mm Clamping Diameter: 35mm |
Saddle |
Amflow Mountain Saddle Titanium |
Dropper Post |
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm) M/L Frame: 190mm XL Frame: 210mm XXL Frame: 230mm |
Accessories |
Avinox Front Light Amflow Bottle Cage Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip) Removable Battery Keys × 2 5/10mm Dropper Post Travel Reducing Spacer Rear Light Torque Wrench Clear Frame Protection Film Shock Pump Quick Start Guide |
