AMFLOW PL Pro Carbon (800wh)

To pre-order & secure your bike contact:

Info@electricbikesplus.co.nz

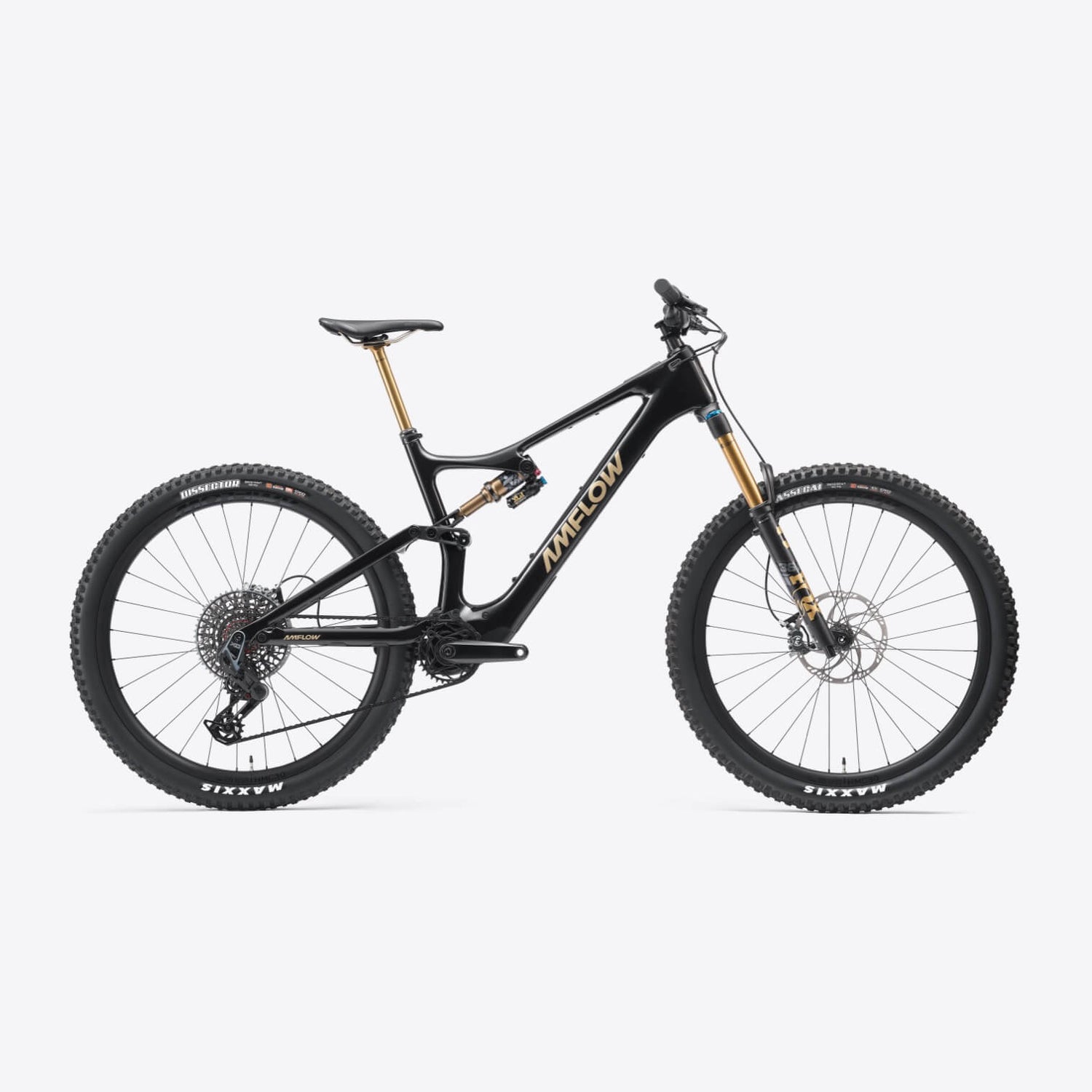

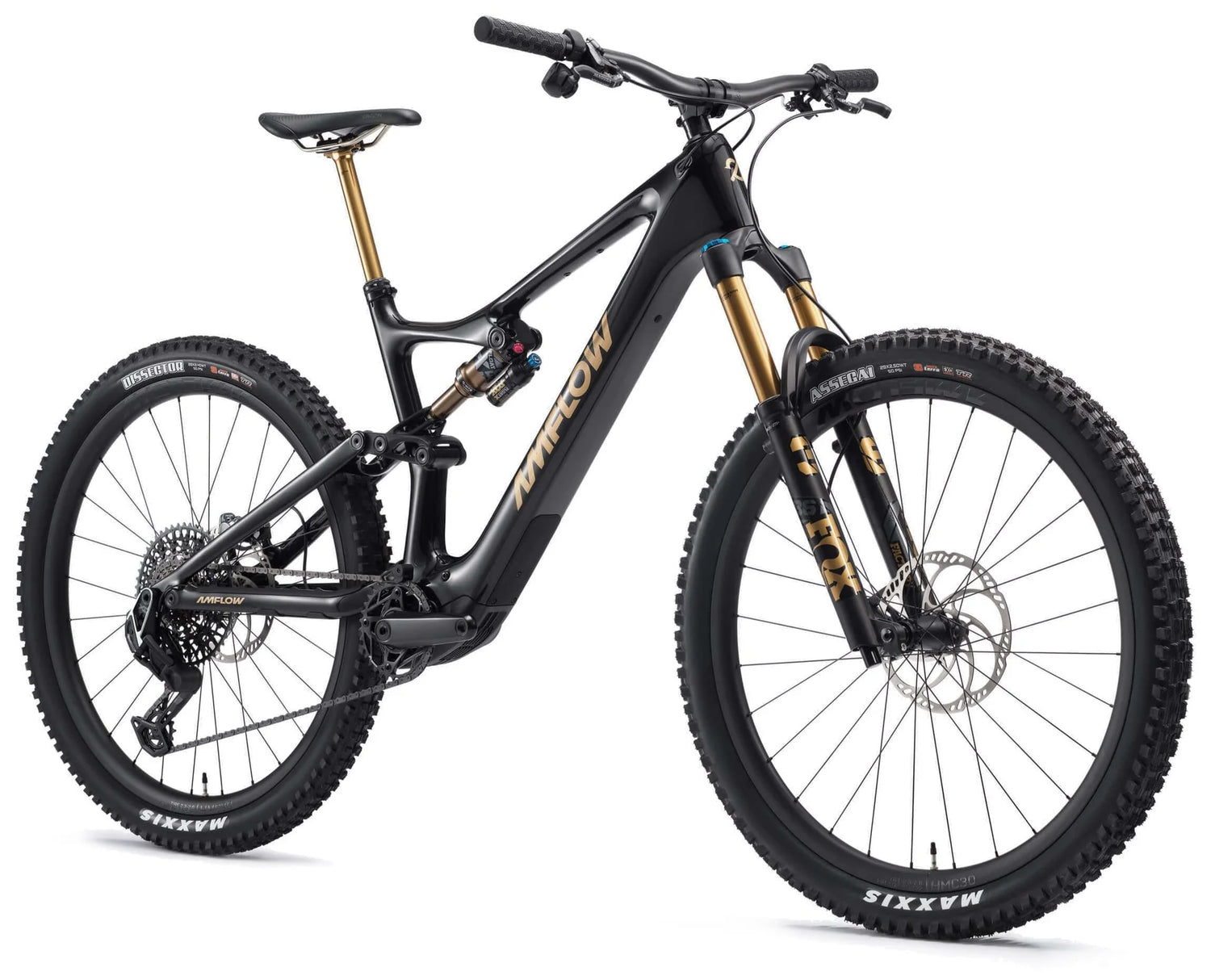

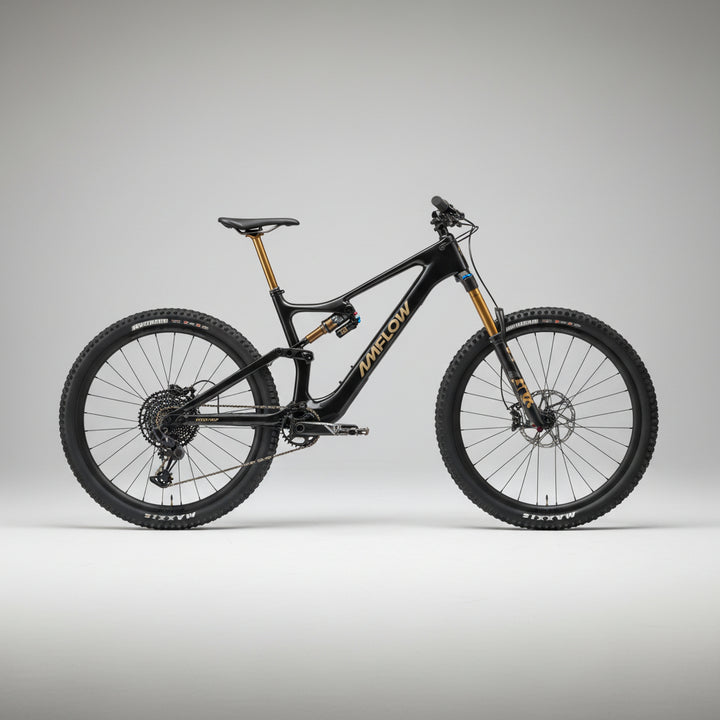

Amflow PL Carbon Pro – DJI Avinox Powered E-MTB

Ride the Future of Trail Performance
The Amflow PL Carbon Pro is not just an electric mountain bike — it’s a technological leap forward. Built around DJI’s revolutionary Avinox drive system, this full-carbon e-MTB delivers ultra-lightweight agility, class-leading torque, and intelligent rider support. Whether you’re powering up steep climbs or flying down rugged trails, this bike responds instantly and adapts to every move.

⚙️ DJI Avinox M1 Drive System

Quiet Power, Seamless Control

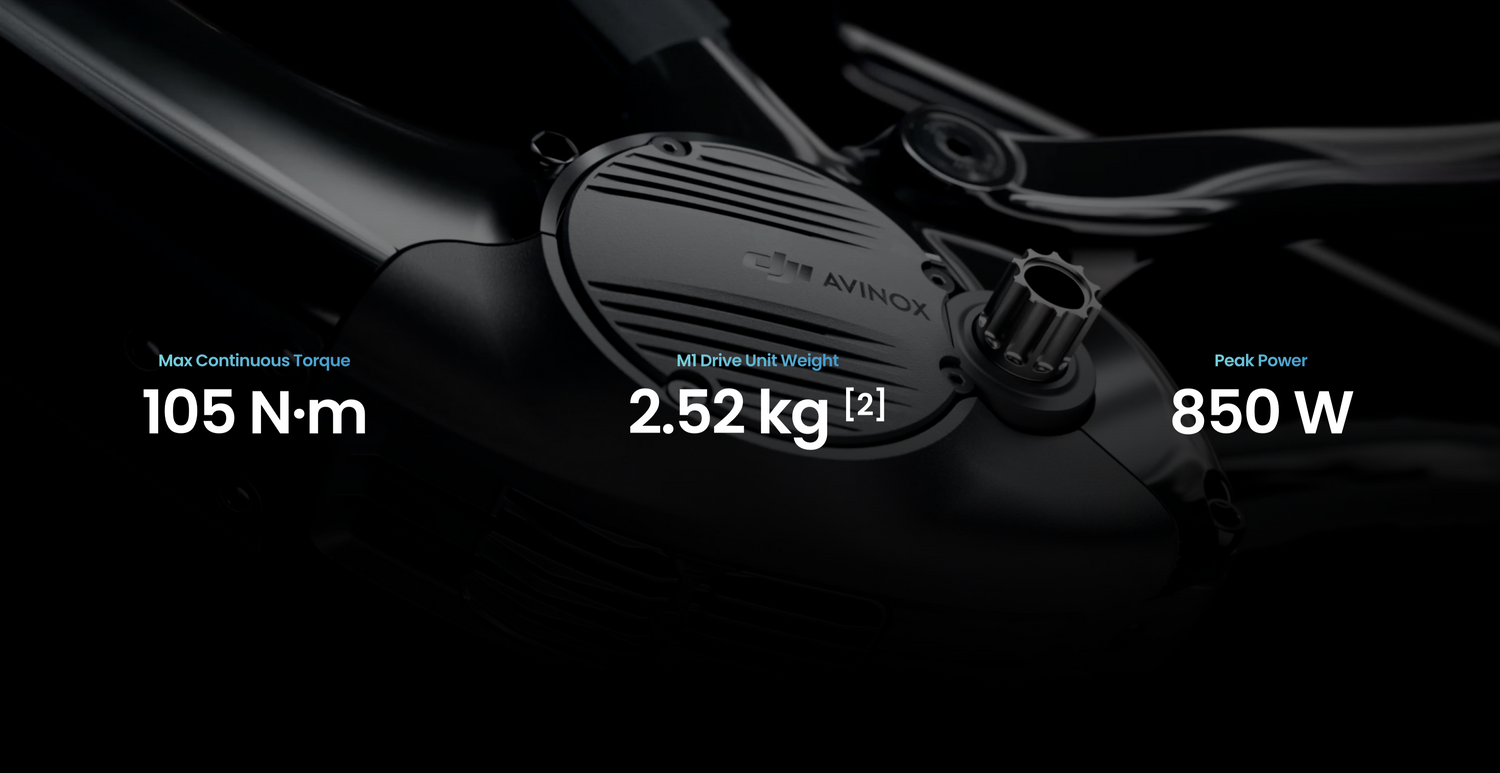

At the heart of the Amflow PL Carbon Pro is the DJI Avinox M1 mid-drive motor. Built by the same team behind DJI’s world-leading drones and stabilizers, the Avinox system delivers incredible torque with smooth, responsive assistance.

• 105 Nm continuous torque for confident climbing

• 850W continuous power, with 1,000W Boost mode for steep trail sections

• Boost Mode: Tap into 120 Nm of torque for instant acceleration

• Advanced sensor array detects rider input, cadence, and terrain

• Auto Mode: Adaptive assistance that adjusts in real-time — no mode switching required

The internal compound planetary gearset offers unmatched power-to-weight efficiency, while smart noise-dampening design keeps the ride whisper quiet, even under load.

🔋 High-Capacity DJI Battery with Fast Charging

Trail Range Meets Charging Speed

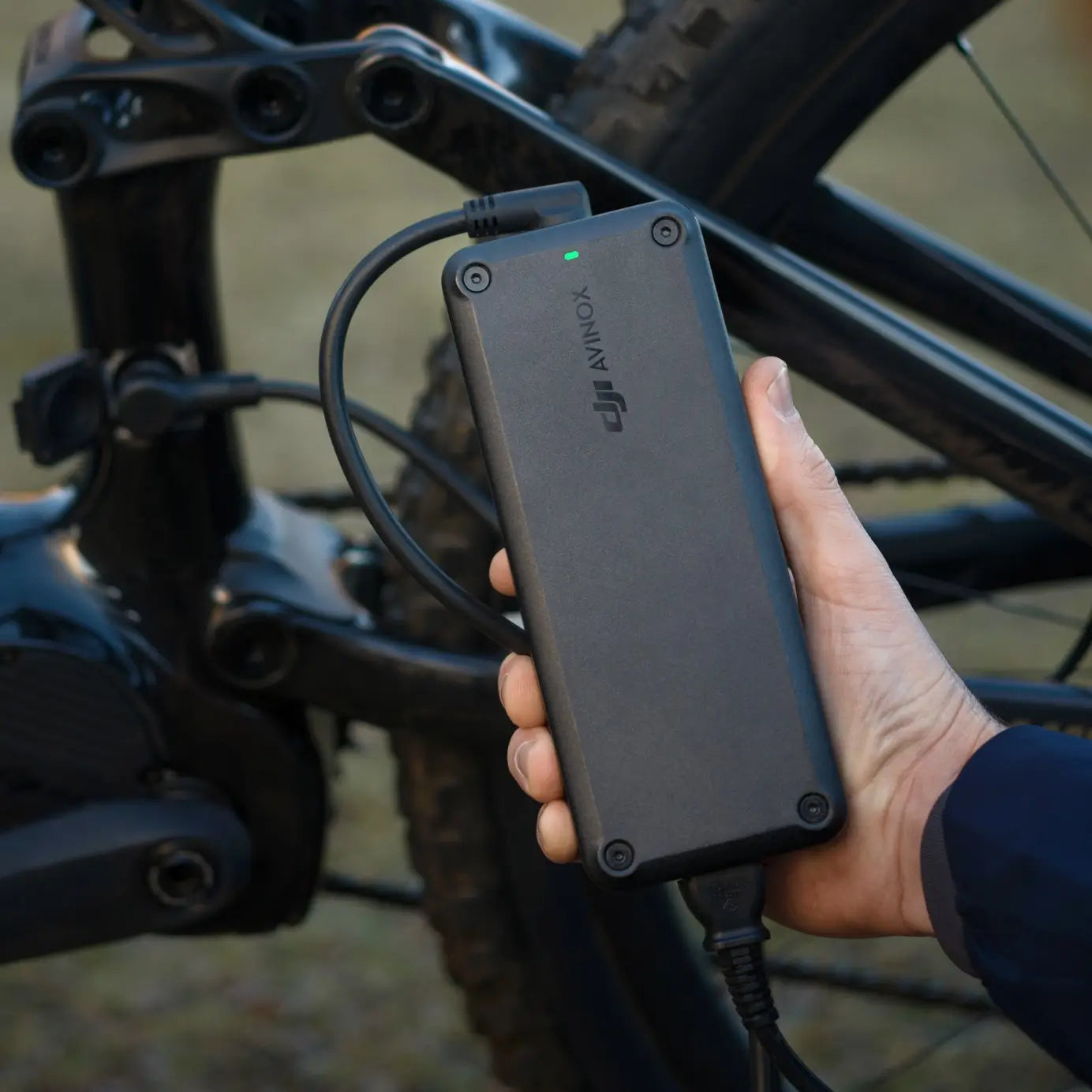

Choose between an 800 Wh or 600 Wh DJI Intube battery, both seamlessly integrated into the carbon frame for low center of gravity and clean aesthetics. Paired with DJI’s 12A GaN charger, you're never off the trail for long:

• 0–75% charge in just 1.5 hours

• Battery health management system for extended lifespan

• Lightweight battery design at only 2.87 kg

• 500 full cycles with at least 80% capacity retention

🧠 Smart Connectivity & Ride Intelligence

Your Ride, Fully Connected

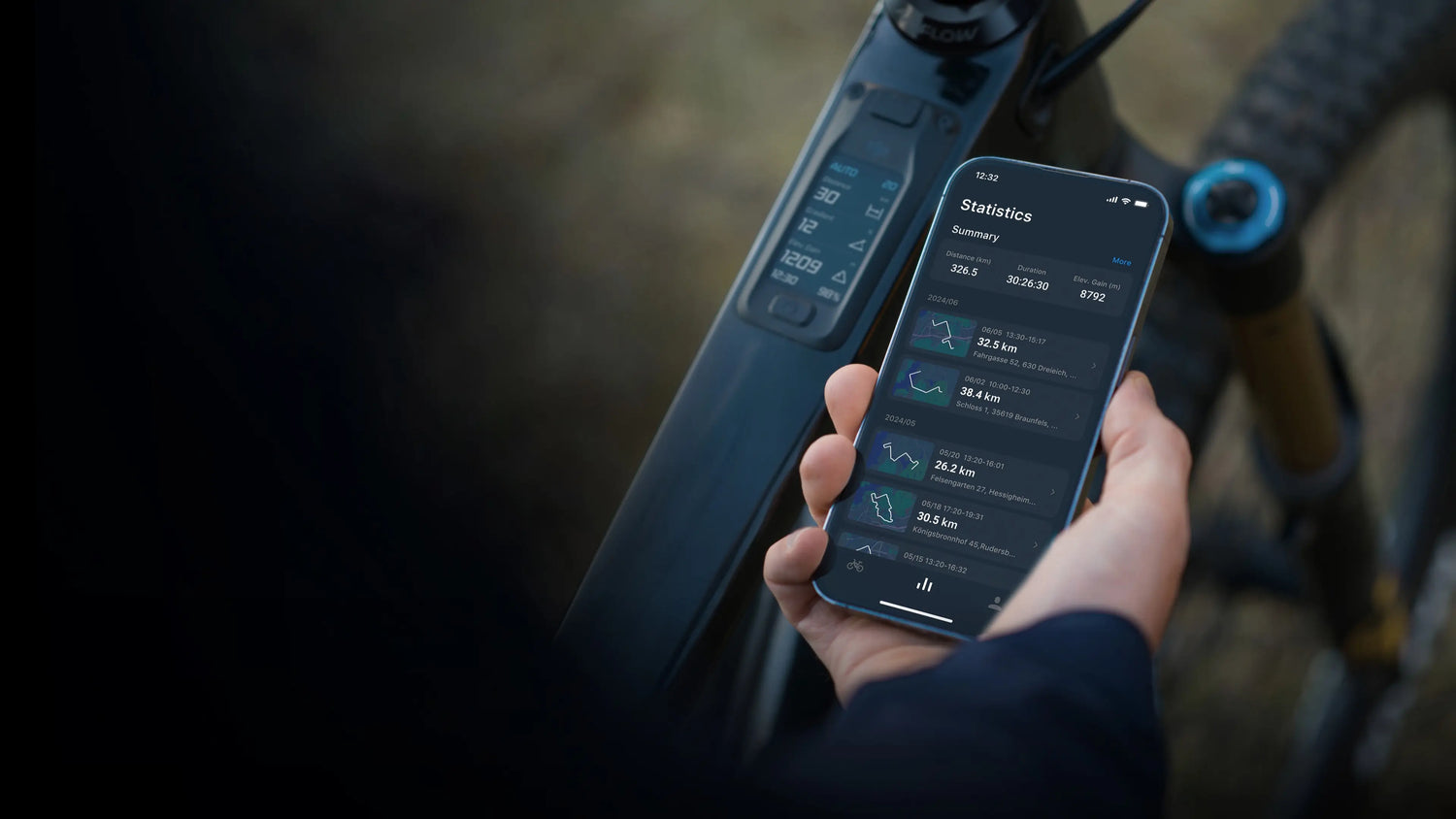

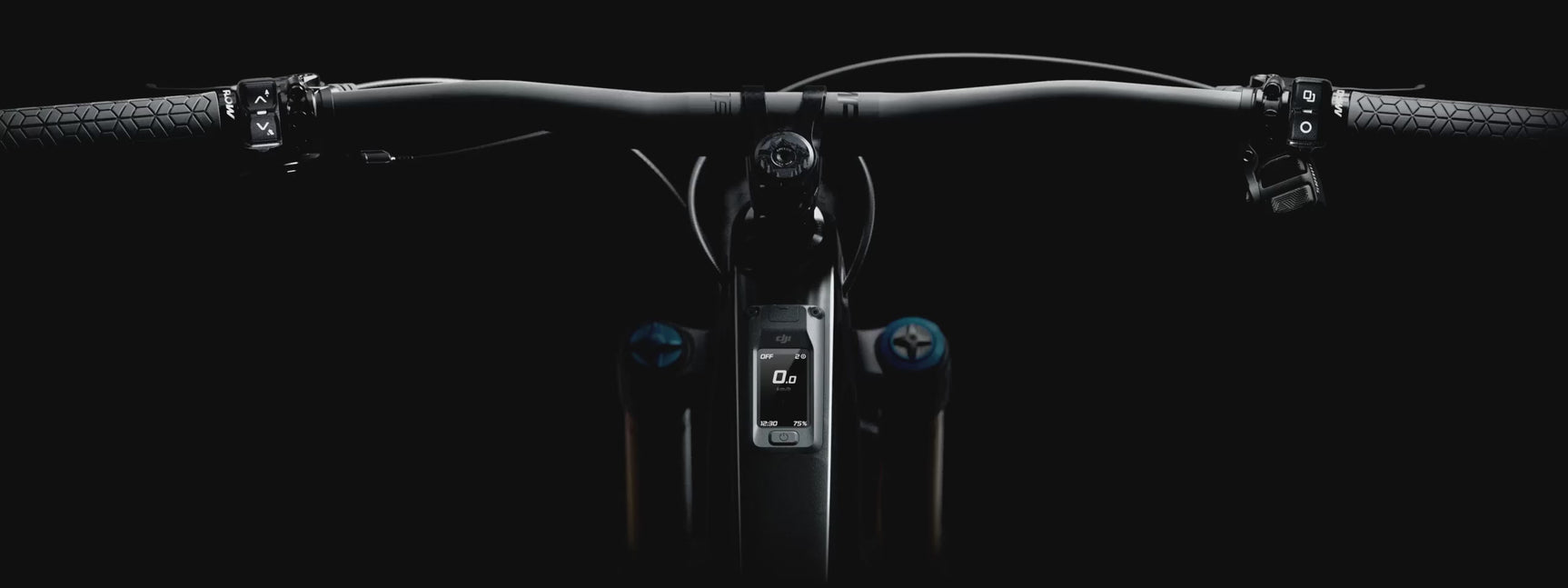

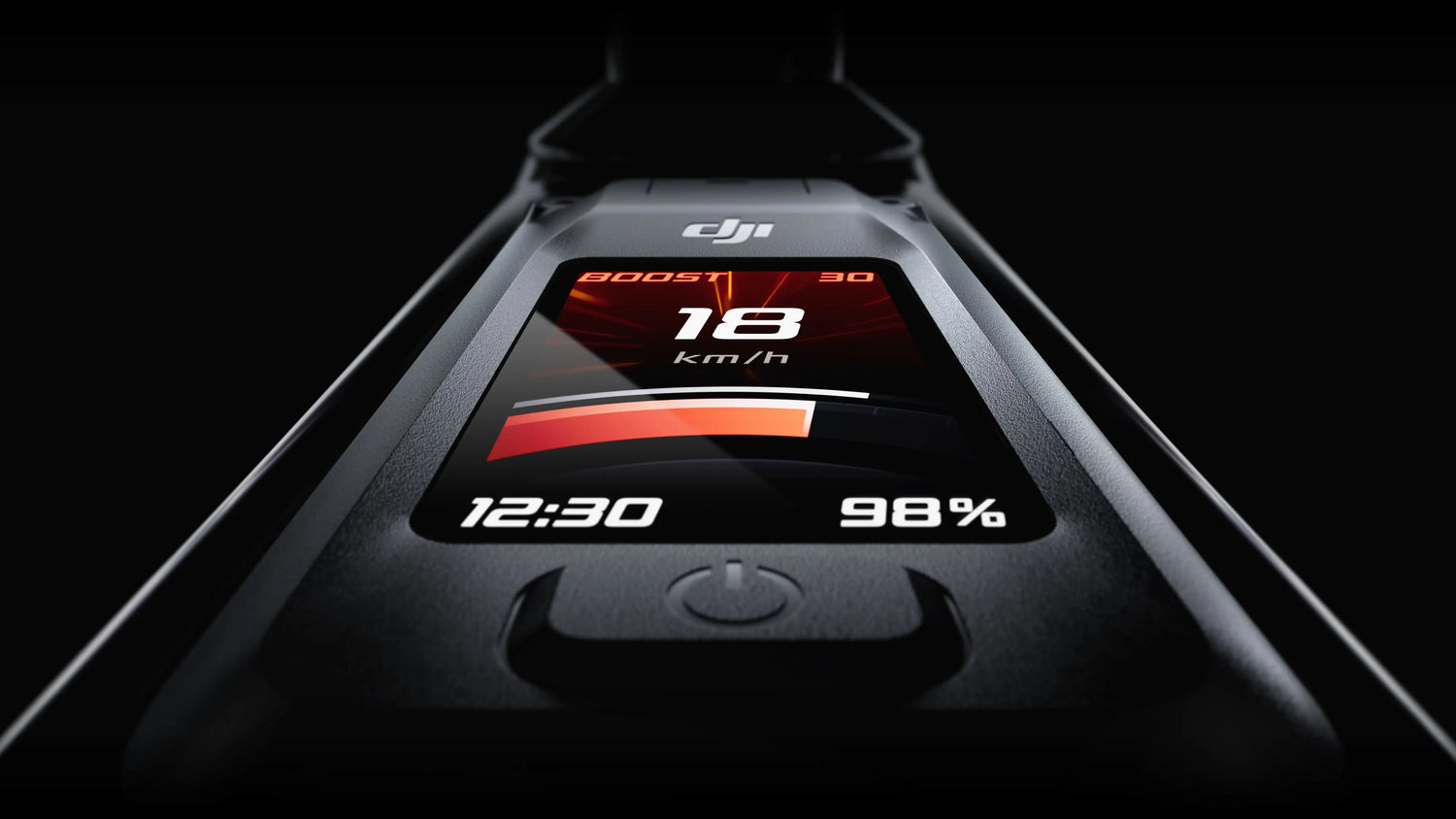

Every Amflow PL Carbon Pro comes with DJI’s Control Display — a sleek 2" OLED color touchscreen built into the top tube. It’s your command center for power modes, ride data, and security.

• Full ride stats: speed, torque, cadence, gradient, calories burned & more

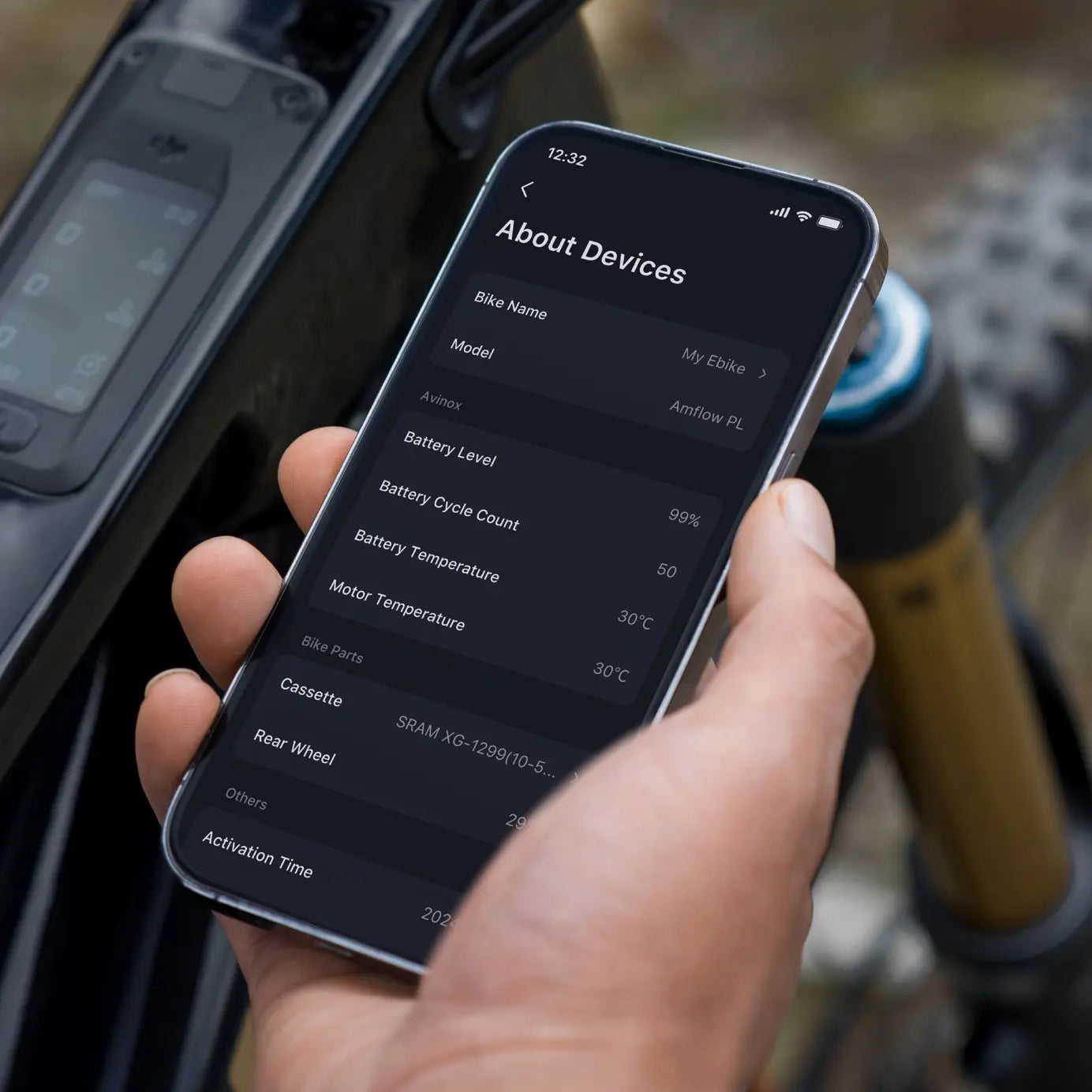

• Wireless syncing with the DJI Avinox app & Strava integration

• Anti-theft features: motion alerts, alarm, GPS tracking, phone unlock

• Dual wireless controllers for assist mode switching without distraction

🔧 Premium Build, Zero Compromises

Lightweight, Durable & Trail-Tested
The Amflow PL Carbon Pro weighs in at just 19.2 kg, thanks to its 2.27 kg carbon fiber frame. Every component is chosen for elite performance:

• FOX Factory suspension (160mm front / 150mm rear)

• SRAM X0 AXS wireless drivetrain

• Magura MT7 Pro 4-piston hydraulic brakes

• Four-bar linkage suspension platform for superior pedaling efficiency

• Flip-chip rear dropout to support 27.5” or 29” wheels

This bike isn’t just light — it’s engineered to handle aggressive trail riding with precision and control.

✅ Tested for the Real World

Amflow and DJI have rigorously tested the Carbon Pro in extreme riding environments. Certified by TÜV SÜD and TÜV Rheinland, it meets the highest safety and durability standards for off-road riding. With authorized dealer support in New Zealand, you're backed by a global service network.

🚴♂️ Available Soon in New Zealand

Get ready to experience the smartest, lightest, and most powerful full-suspension e-MTB on the market. The Amflow PL Carbon Pro will be available exclusively through Electric Bikes Plus.

📍 In-store demo and test rides coming soon
📦 Limited stock – register now to secure yours
📧 [Join the Waitlist] | ☎️ Contact us to learn more

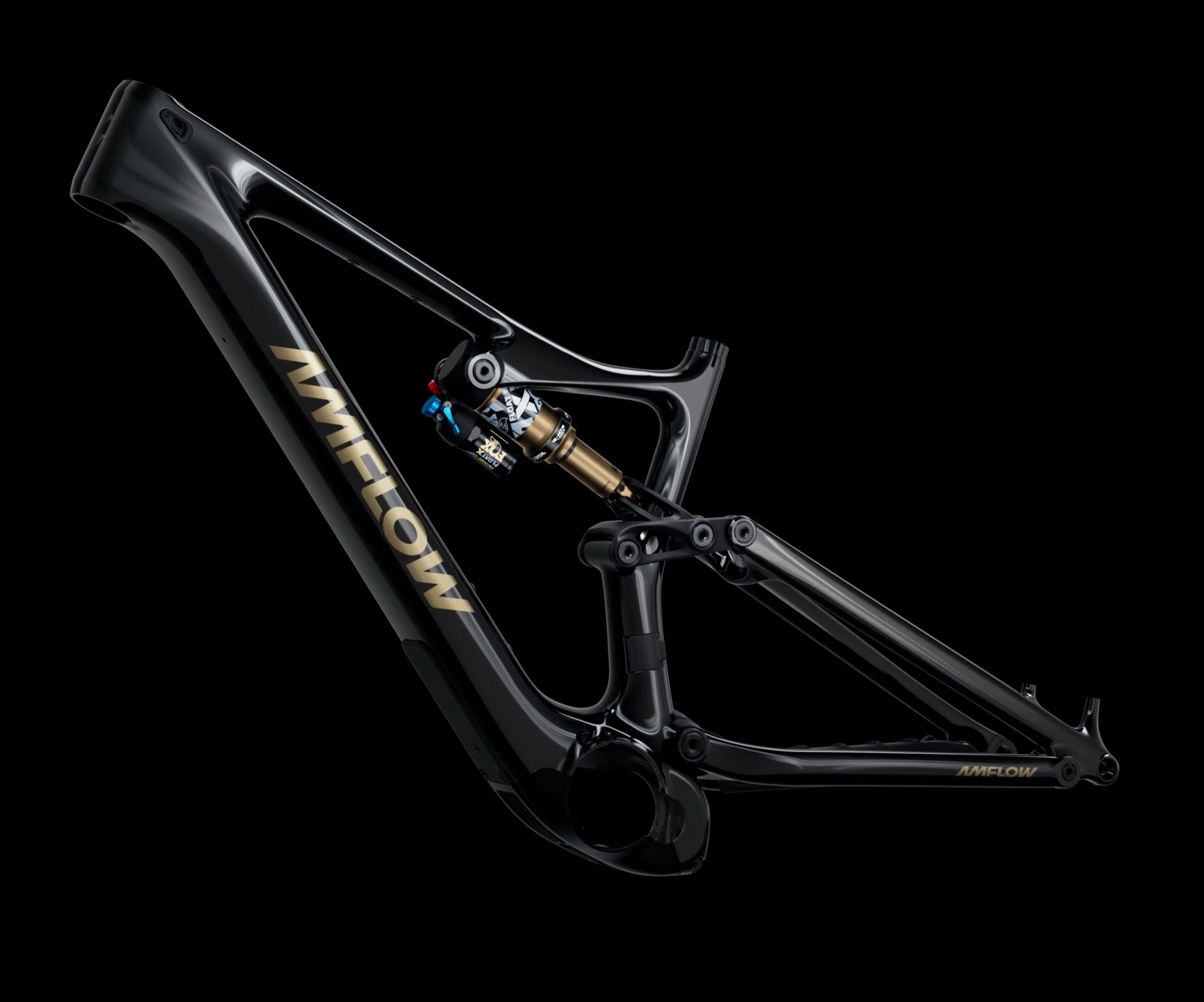

Frame

• Amflow PL Carbon Frame

• Cosmic Black

• 150mm rear travel

• Compatible with 27.5" and 29" rear wheels

E-Bike System

• Avinox M1 Drive Unit: 105 N·m

• Avinox Screen: 2-inch OLED Control Display

• Avinox Integrated Battery: 600Wh / 800Wh

• Avinox Wireless Controllers: Right and left sides

• Avinox Fast Charger: 12A/508W

Rear Shock

• FOX FLOAT X Factory

• Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

Fork

• FOX 36 Factory

• 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

Transmission

• Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable

• Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

• Shift Levers: SRAM AXS Pod Controller

• Cassette: SRAM XS-1295 Eagle Transmission 10-52T

• Chain: SRAM X0 Eagle Transmission Flattop Chain

• Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

• Magura MT7 Pro hydraulic disc brake

• HC lever, 4-piston caliper

• 203mm Storm HC Rotor (front and rear)

Wheels

• Amflow HMC-30

• Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready

• Spokes: SAPIM E-Light Straightpull

• Front Hub: Alloy, 15×110mm thru-axle, 28h, straight-pull, 6-bolt

• Rear Hub: Alloy, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

Tires

• Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

• Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Cockpit

• Handlebar: Amflow Enduro Carbon Handlebar, 25mm rise, 800mm wide

• 5° upsweep, 9° backsweep

• Grips: Amflow Enduro Grips

• Stem: Amflow Enduro Stem, One-piece CNC, 35mm length, 35mm clamp

Saddle & Seatpost

• Saddle: Ergon SM PRO M/L

• Seatpost: Fox Transfer Factory, Travel adjustable in 5mm

  • M: 125–150mm

  • L/XL: 155–180mm

  • XXL: 185–210mm

Accessories

• Quick Start Guide

• Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

• Shock Pump

• Front and Rear Lights
