AMFLOW PX Carbon Pro (Gen 2)
per week with
Q-Card
(based on selected term)
Cash price: $17,099.00
Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply.
AMFLOW PX Carbon Pro (Gen 2) - Medium is backordered and will ship as soon as it is back in stock.
AMFLOW PX Carbon Pro (Gen 2)
AMFLOW PX Carbon Pro (Gen 2) - Medium is backordered and will ship as soon as it is back in stock.
Description
Description
⚠️LIMITED STOCK ALLOCATION⚠️
PRE ORDER YOURS TODAY

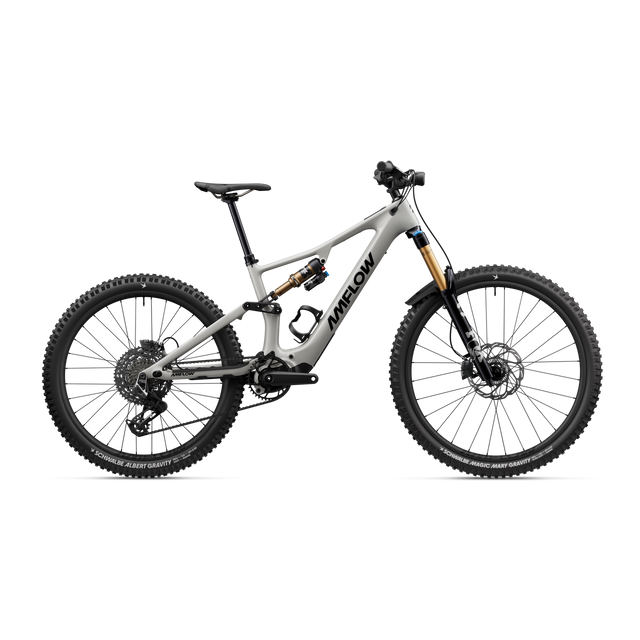

AMFLOW PX Carbon PRO Electric Mountain Bike
Push the limits of what an e-MTB can be with the AMflow PX Carbon — a high-performance electric mountain bike engineered for riders who demand power, precision, and lightweight agility in one package.
Built around an ultra-light carbon fibre frame, the PX Carbon delivers an exceptional ride feel at just around 20.6 kg, making it one of the most agile full-power e-MTBs in its class. At its core is the advanced Avinox M2S drive system, producing up to 150 Nm of torque for effortless climbing and powerful acceleration when you need it most.
The integrated 700 Wh battery provides impressive range for long days on the trail, while fast-charging capability keeps downtime to a minimum. Whether you're tackling steep climbs or flowing descents, the bike’s intelligent assist system delivers smooth, natural power with multiple riding modes, including a Boost function for extra bursts on demand.
Designed for versatility, the PX Carbon features a highly adjustable geometry system with multiple configurations, allowing you to fine-tune handling for different terrains and riding styles. Premium components — including FOX suspension, Magura hydraulic disc brakes, and a mullet wheel setup — ensure confident control, traction, and stability across technical trails.
Smart technology is fully integrated, with a built-in touchscreen display, GPS navigation, app connectivity, and real-time ride data. From performance tracking to route guidance, everything you need is at your fingertips.
Key Features:
- Lightweight carbon fibre frame (~20.6 kg total weight)
- Avinox M2S motor with up to 150 Nm torque
- 700 Wh battery with long-range capability
- Fast charging system
- Multiple assist modes with Boost function
- Adjustable geometry for customised ride performance
- FOX suspension and Magura hydraulic disc brakes
- Mullet wheel setup (29” front / 27.5” rear)
- Integrated touchscreen, GPS, and app connectivity
| M | L | XL | XXL | ||
|---|---|---|---|---|---|
| A | Reach | 455mm | 478mm | 503mm | 528mm |
| B | Stack Height | 622.1mm | 632.2mm | 645.9mm | 659mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 793.1mm | 820.9mm | 852mm | 883.9mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1231.3mm | 1259.1mm | 1290.2mm | 1322.1mm |
| G | Chainstay Length | 438/451mm | 438/451mm | 438/451mm | 438/451mm |
| H | Bottom Bracket Drop | 10.5/23.7mm | 10.5/23.7mm | 10.5/23.7mm | 10.5/23.7mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube Length | 586.9mm | 619.7mm | 642.8mm | 672.2mm |
| K | Head Tube Angle | 64.2° | 64.2° | 64.2° | 64.2° |
| L | Head Tube Length | 109mm | 120mm | 135mm | 150mm |
| M | Actual Seat Tube Angle | 72° | 72° | 72° | 72° |
| N | Effective Seat Tube Angle | 78° | 78° | 78° | 77.7° |
| O | Seat Tube Height | 415mm | 427mm | 447mm | 466mm |
Frame |
Amflow PX Carbon Pro Frame Moonstone Gray 40 adjustable geometry configurations * Compatible with 27.5″ and 29″ rear wheels
|
E-Bike System |
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m Avinox Screen: 2-inch OLED Control Display Avinox Integrated Battery: 700Wh Avinox Wireless Controllers: Right and left sides Avinox Fast Charger: 12A/508W |
Rear shock |
FOX Float X Factory (MY 2027) 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock |
Fork |
FOX 36 Factory (MY 2027) 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset |
Drivetrain |
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox Shift Levers: SRAM AXS Pod Rocker Controller Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T Chain: SRAM X0 Eagle Transmission Chain Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
Brakes |
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers Magura Sensor Rotor (203mm, 2.5mm) |
Wheels |
Amflow XMC-30 Mullet Version Front Rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready Rear Rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready Spokes: SAPIM E-Light Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD |
Tires |
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready |
Handlebar |
Amflow Enduro Carbon Handlebar 40mm Rise, 800mm Width, 35mm Diameter 5-degree upsweep, 9-degree backsweep |
Grips |
Amflow Enduro Grip 2 Lock-on Grips |
Stem |
Amflow Mountain Bike Split Stem Length: 35mm Clamping Diameter: 35mm |
Saddle |
Amflow Mountain Saddle Titanium |
Dropper Post |
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm) M/L Frame: 190mm XL Frame: 210mm XXL Frame: 230mm |
Accessories |
Avinox Front Light Amflow Bottle Cage IoT Nano SIM Card Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip) Schwalbe Clik Valve Conversion Set FOX 36 Mud Guard (Short) 5/10mm Dropper Post Travel Reducing Spacer Rear Light Torque Wrench Clear Frame Protection Film Shock Pump Quick Start Guide |
