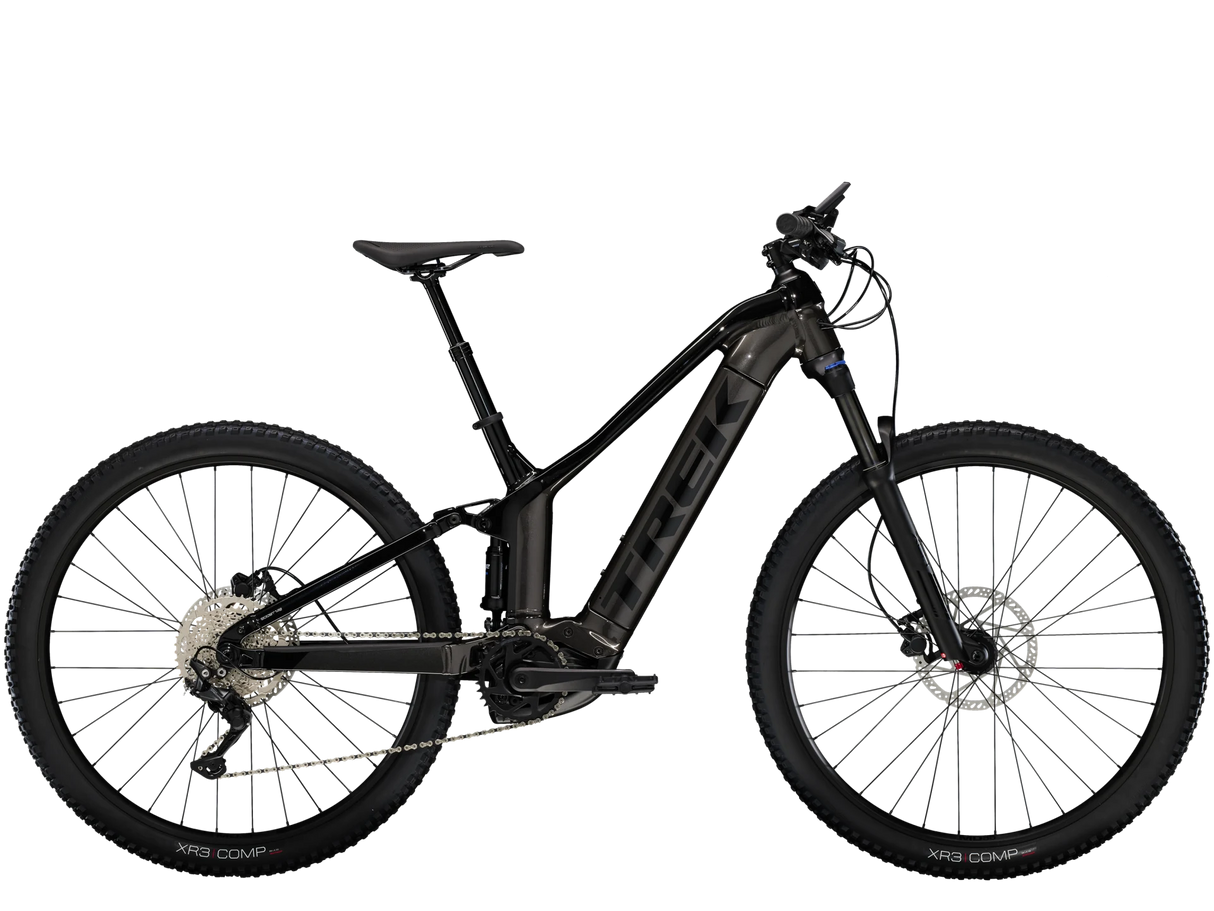

Trek Powerfly FS 4 Gen 3 - Black – Electric Bikes Plus NZ

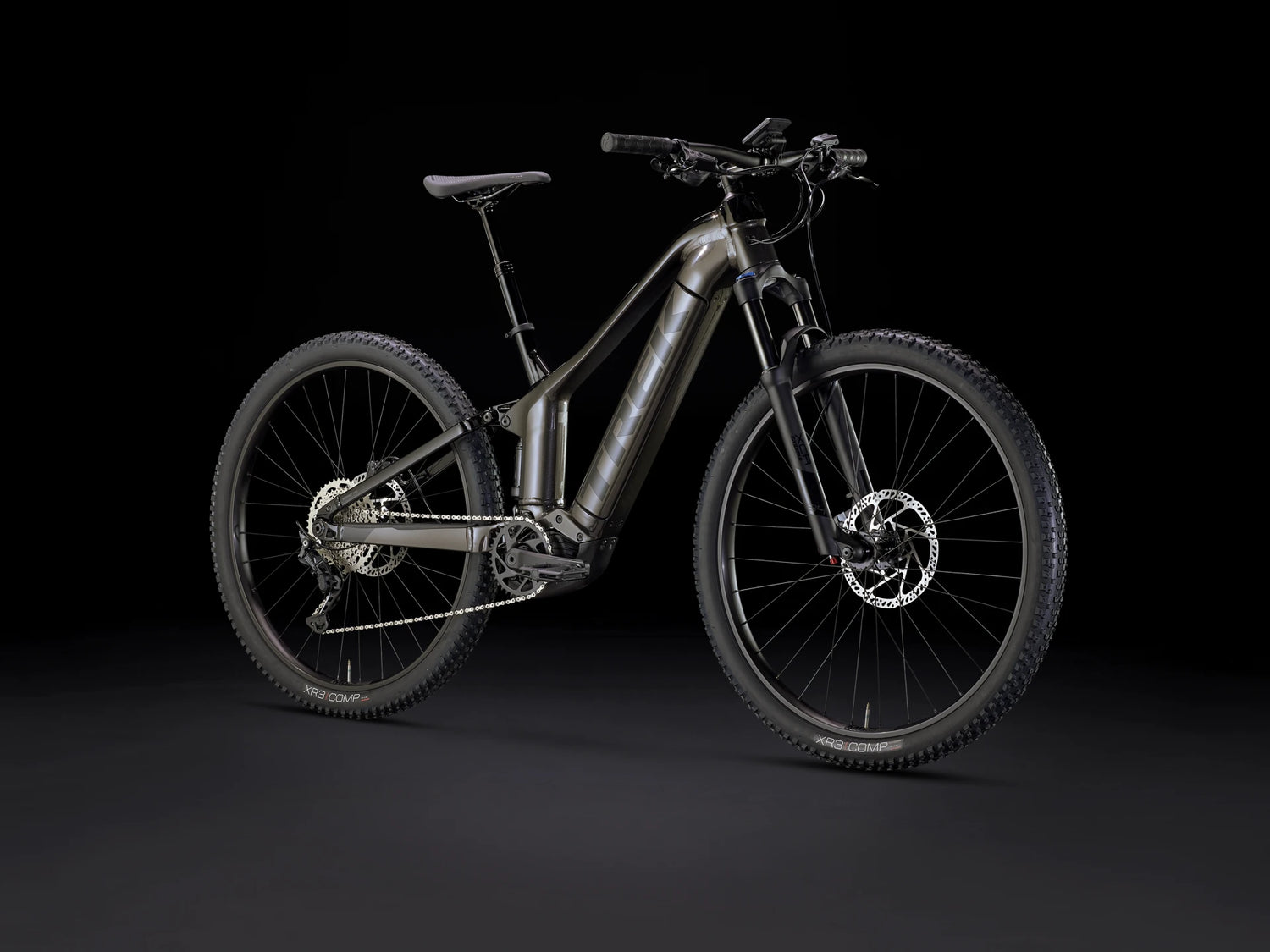

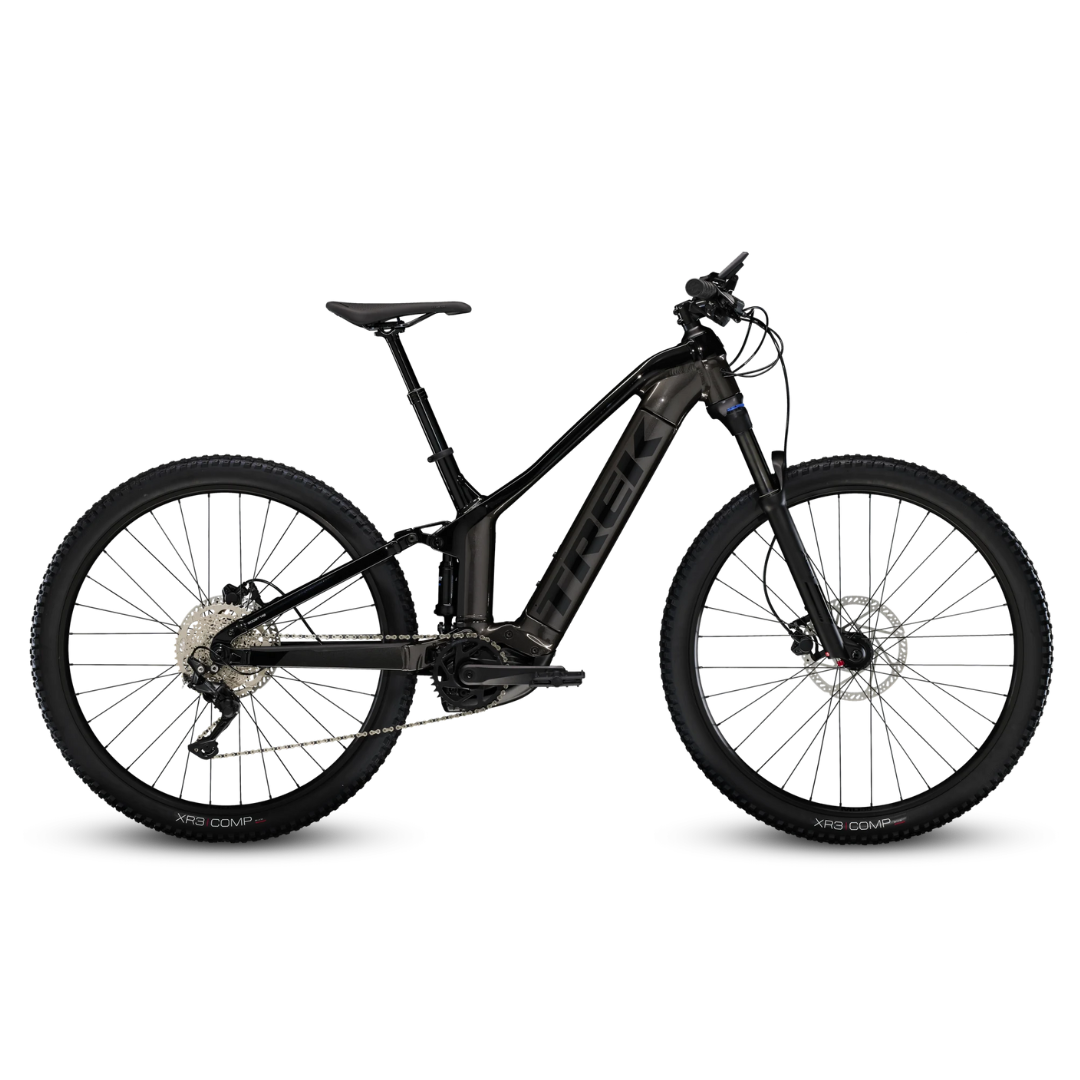

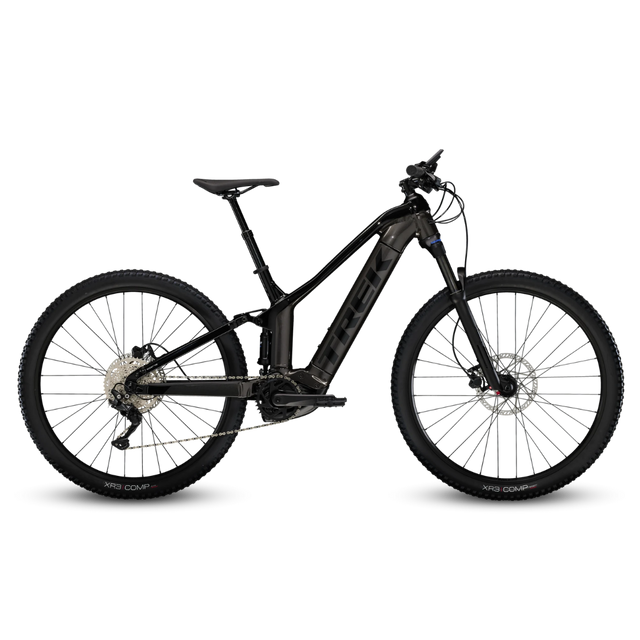

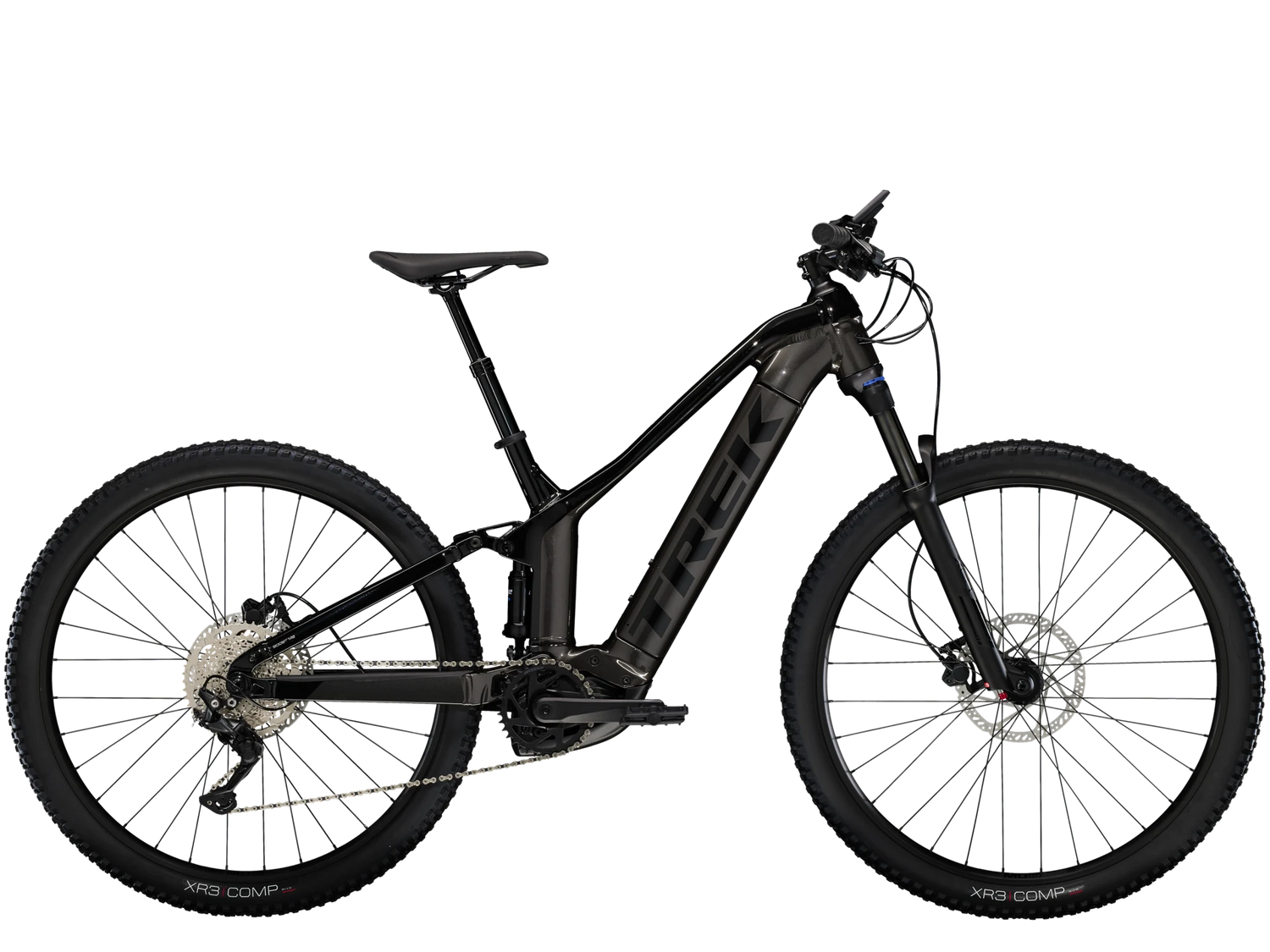

Powerfly FS 4 is a full suspension electric mountain bike built to tackle rugged trail adventures. The plush suspension set-up soaks up rough terrain, and the powerful Bosch electric drive system boosts your capacity to crush climbs and mile after mile of singletrack.

You want to get out and explore more trails. You're looking for an e-MTB with trail-smoothing full suspension and the reliable, leg-boosting power of an electric drive system made specifically for the demands of off-road riding.

A durable aluminium frame that fully encases a long-range 500 Wh battery. The latest from Bosch with smart system Performance Line CX motor, capable of speeds up to 20 mph (25 km/h in Europe), including the new Bluetooth® LED remote for easy connectivity and all-in-one navigation and activity tracking through the eBike Flow app. Plus, a 120 mm suspension fork, 100 mm of rear travel, a 10-speed Shimano drivetrain and a dropper post.

This full suspension e-MTB is comfortable, efficient and fast on rough terrain. The powerful Bosch electric drive system makes it possible to tackle any climb you encounter and adventure further than ever.

For e-MTB, full suspension is a game-changer: it soaks up rugged terrain so you can ride the Bosch pedal-assist smart system to its full potential

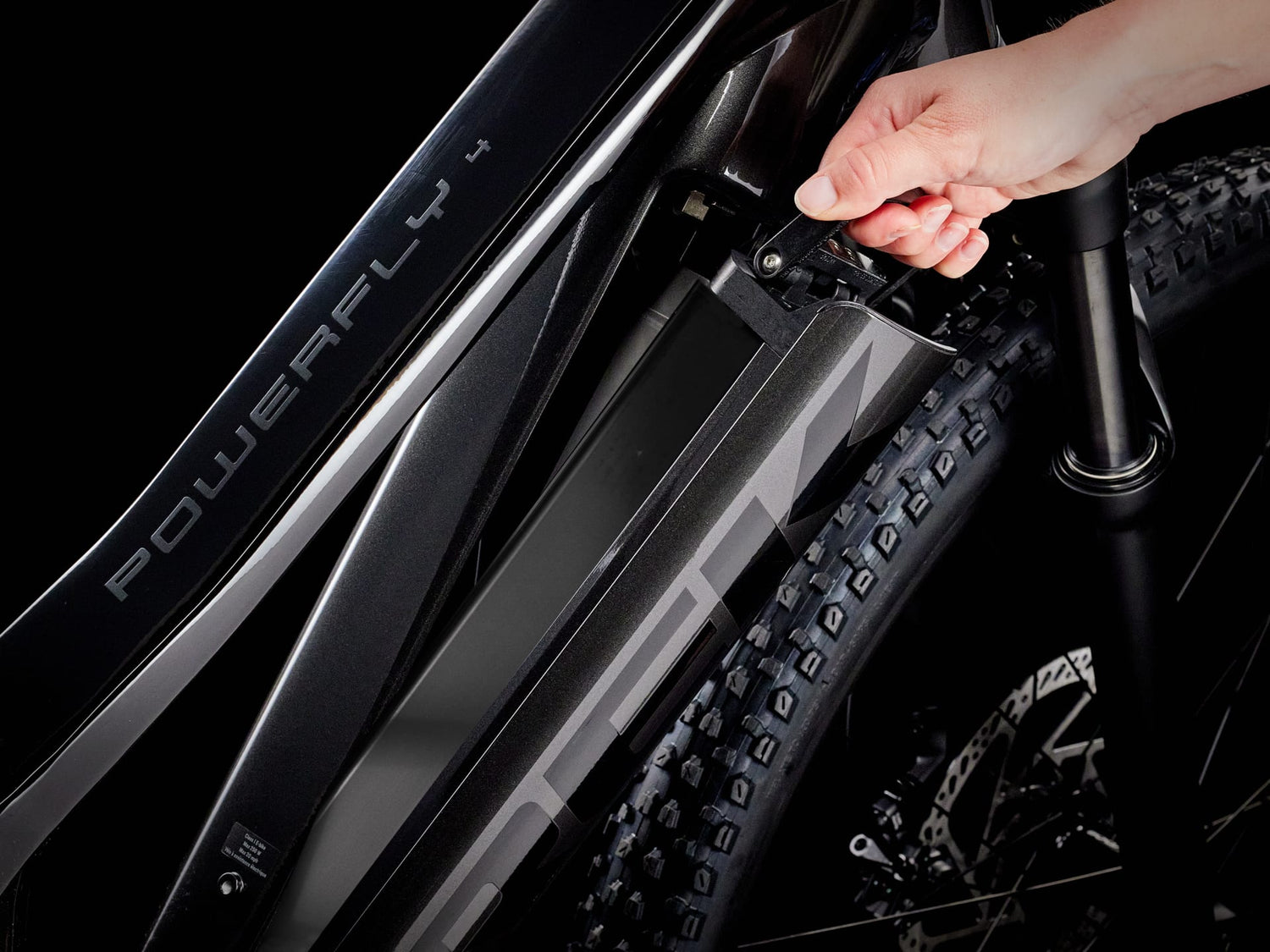

Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage – even on full suspension e-MTBs
The dropper post lets you lower your saddle on the fly so it's out of the way on descents
It comes equipped with Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain
Powerfly FS frames feature a curved top tube that makes standing over the bike easier. Plus, Smart Wheel Sizing means you'll get the fastest wheel that fits – 29˝ wheels on larger frames, 27.5˝ wheels on smaller frames

*Please note – spec applies to all sizes unless listed separately

Frameset

Frame	Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armour, rocker link, rack and mudguard mount, ABP, Boost148, 100 mm travel
*Fork	Size: S SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm bolt-on thru axle, 100 mm travel
*Fork	Size: M , L , XL SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm bolt-on thru axle, 120 mm travel

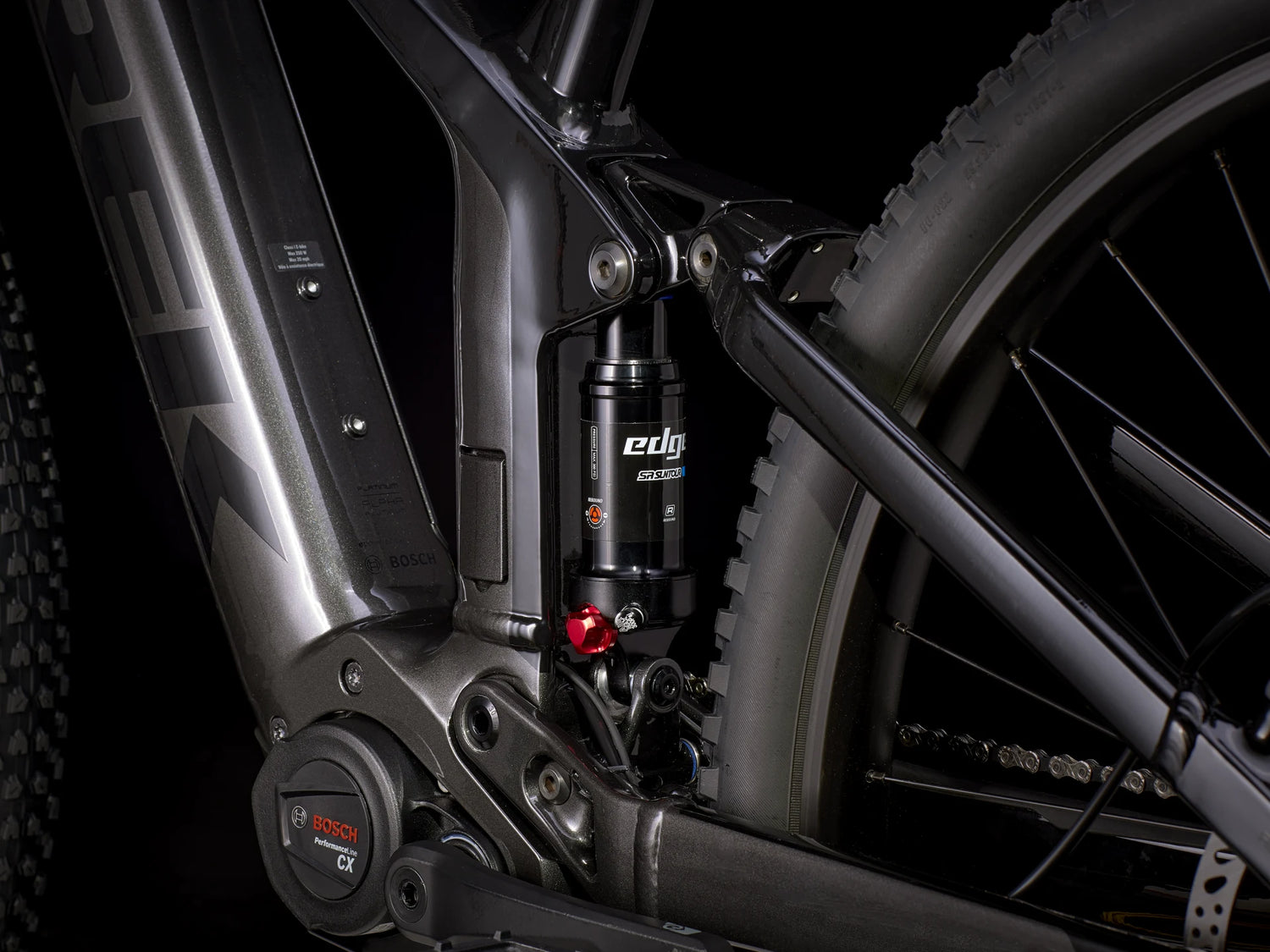

Shock	SR Suntour Edge R, 190 mm x 45 mm
Max compatible fork travel	120mm (XS and S: 520mm axle-to-crown, M and up: 545mm axle-to-crown)

Wheels

Hub front	Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
*Tyre	Size: S Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.35"

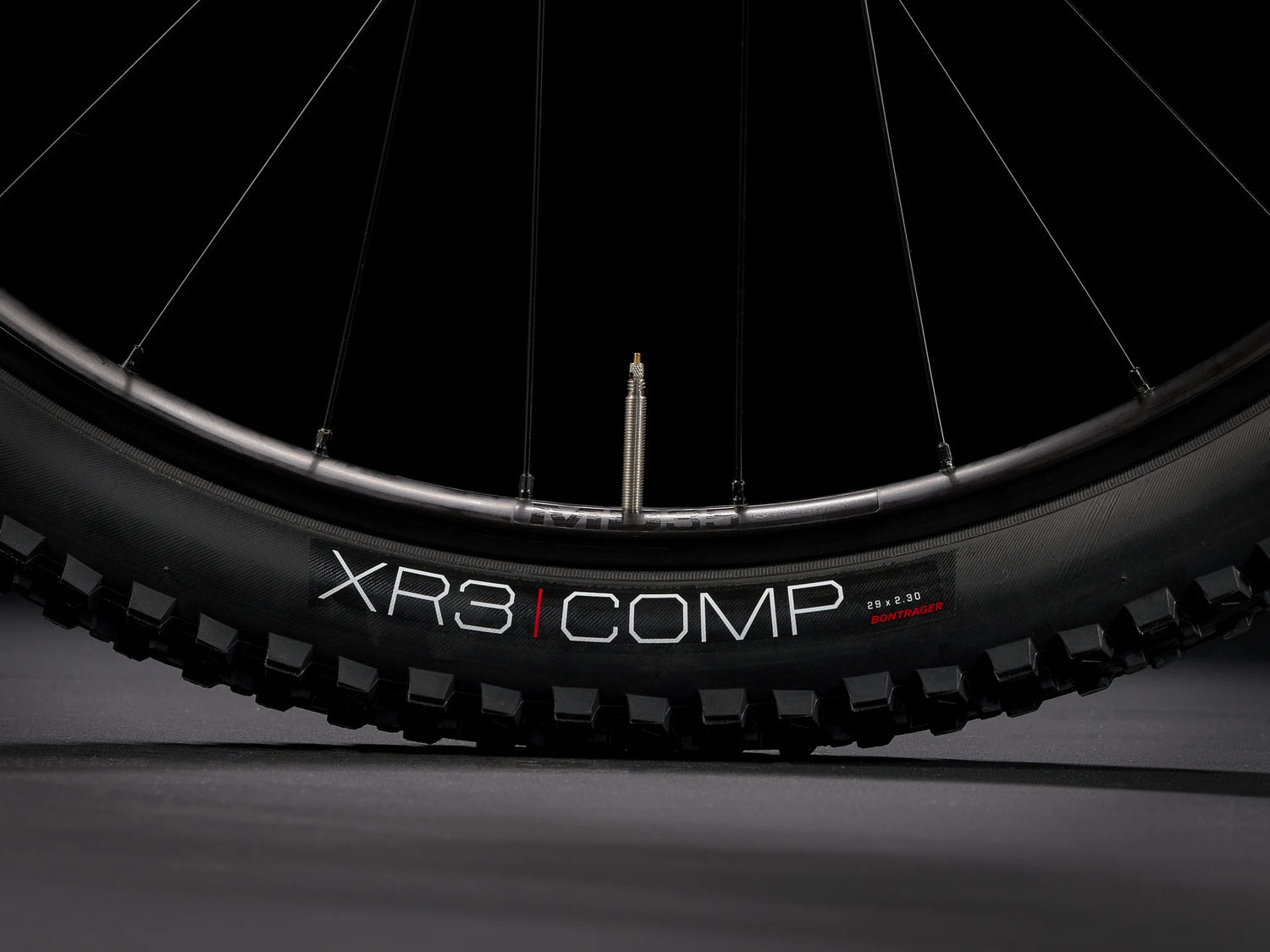

*Tyre	Size: M , L , XL Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.30"
Max tyre size	Frame: 29x2.40" (XS & S: 27.5x2.60"), Fork: See manufacturer

E-system

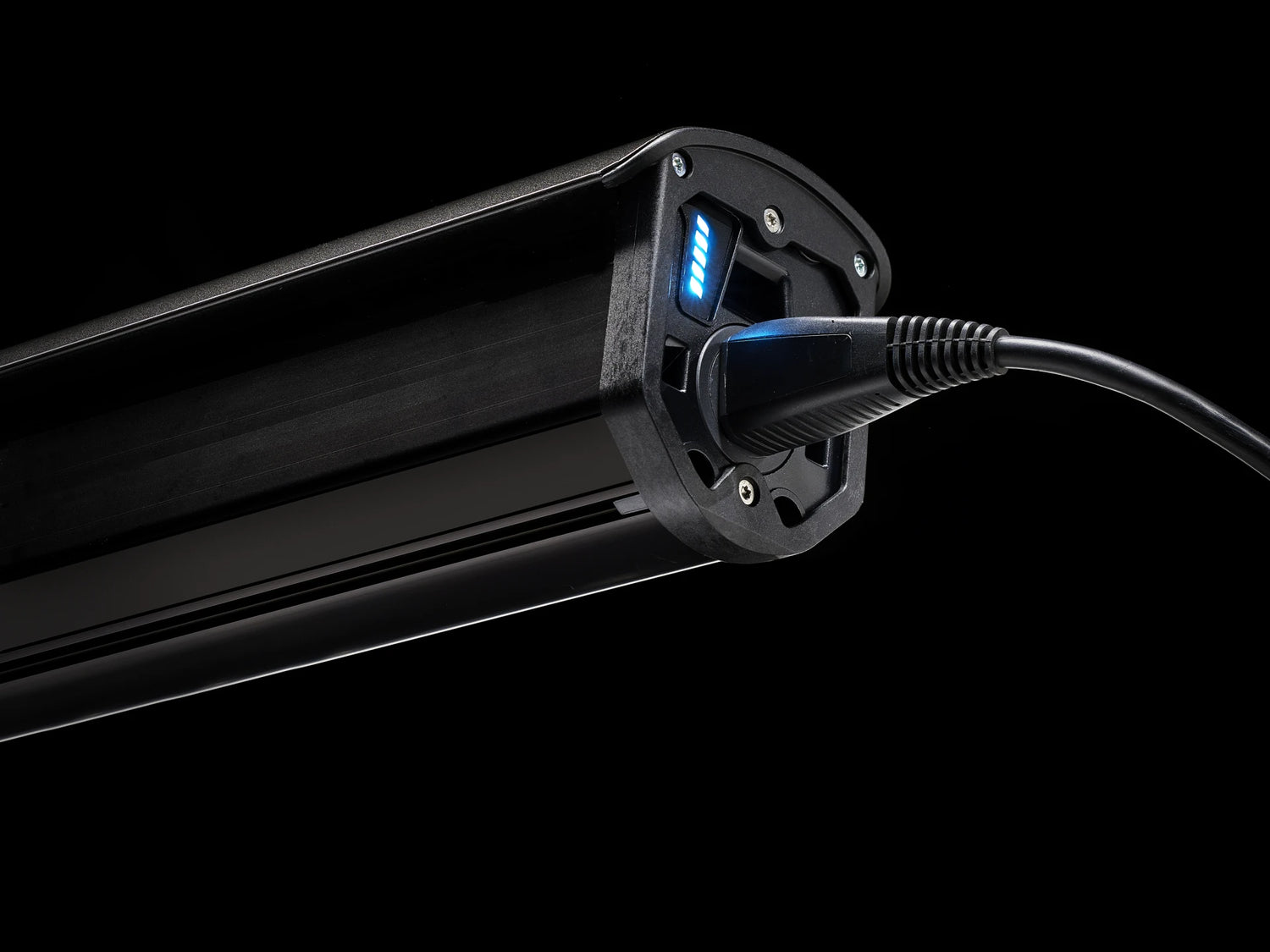

Battery	Bosch PowerTube 500 Wh, smart system
Charger	Bosch standard 4A, 230V, smart system
Controller	Bosch Intuvia 100, smart system

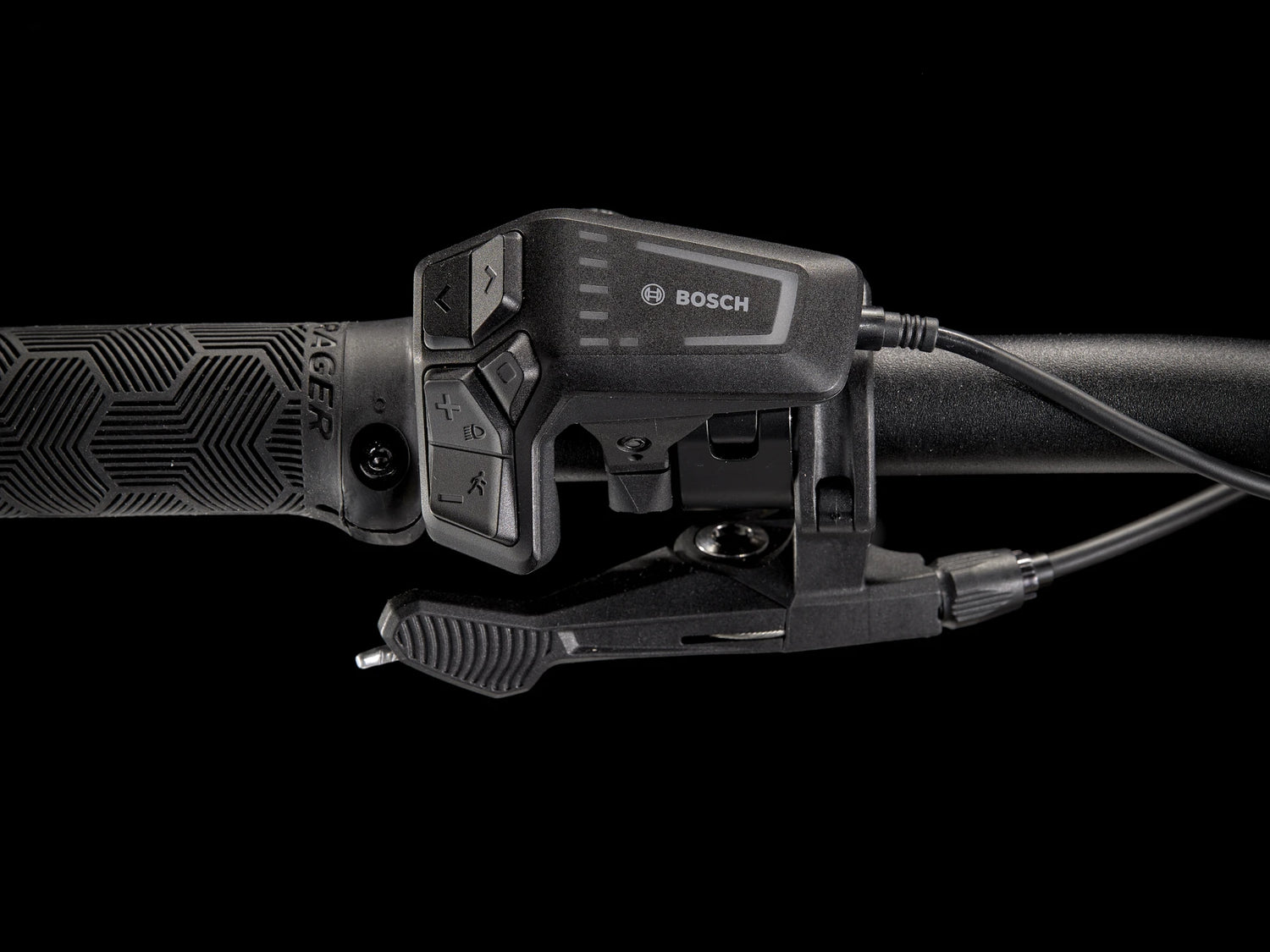

Computer	Bosch LED remote, smart system

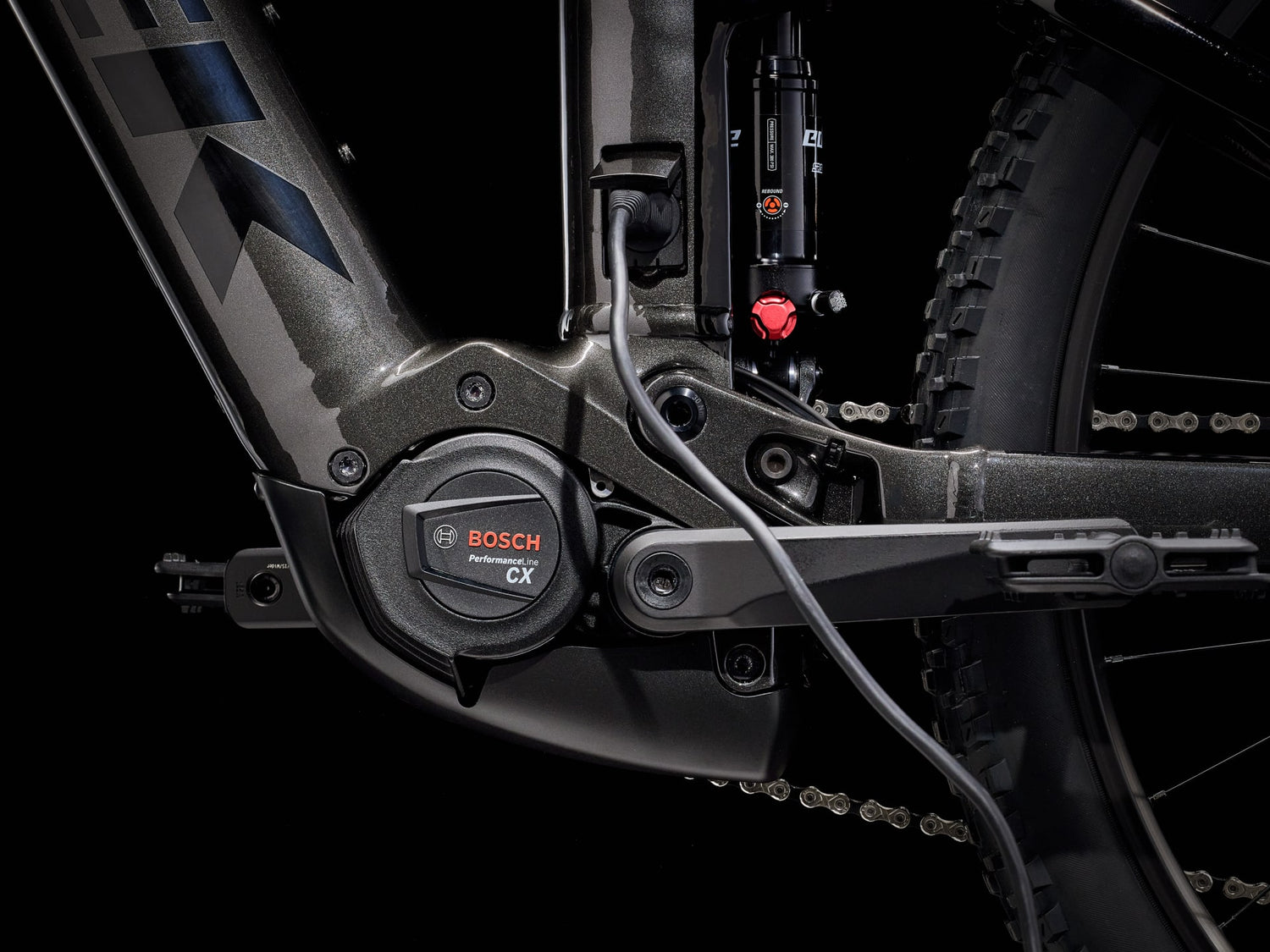

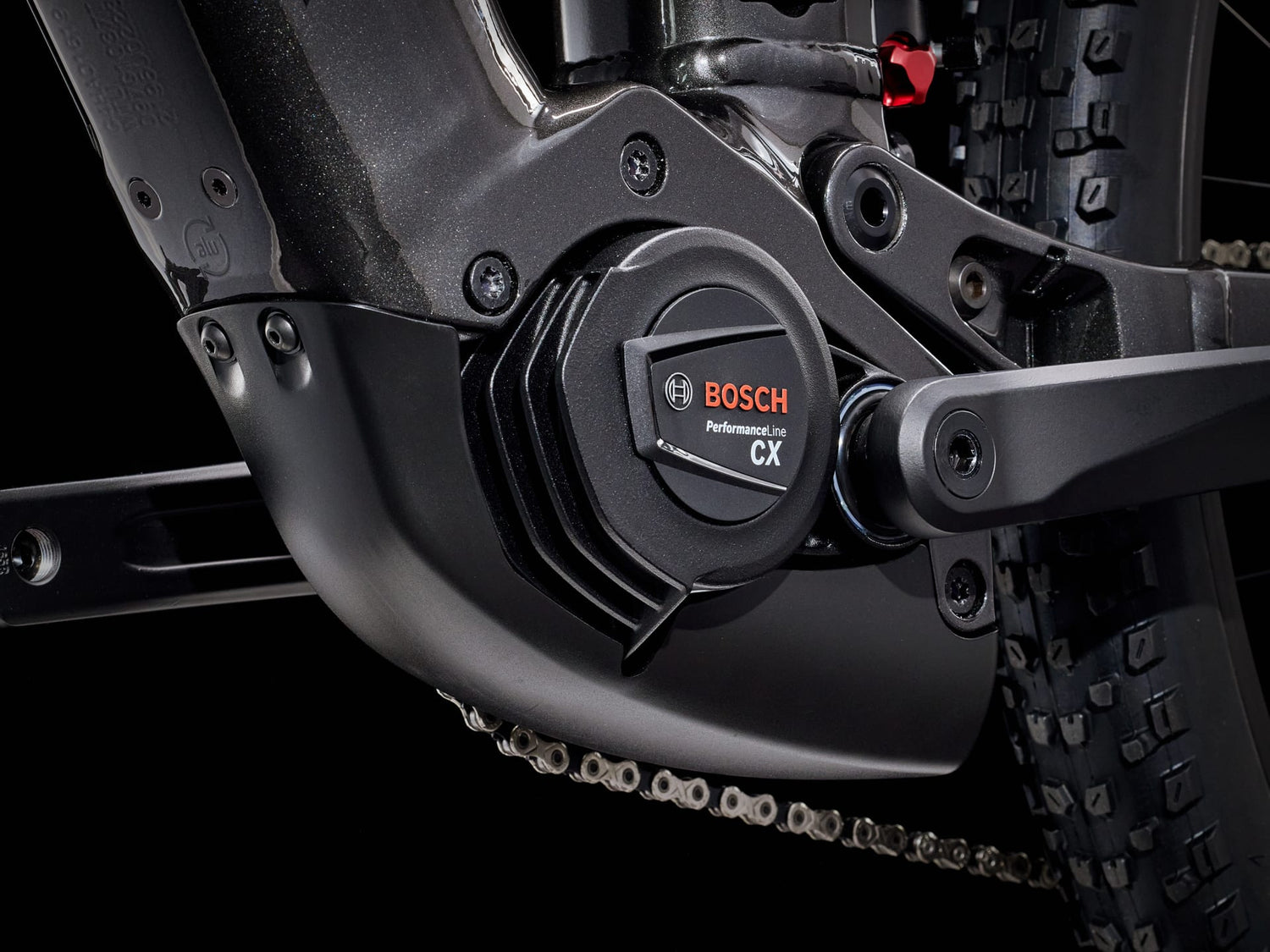

Motor	Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

Drivetrain

Shifter	Shimano Deore M4100, 10 speed

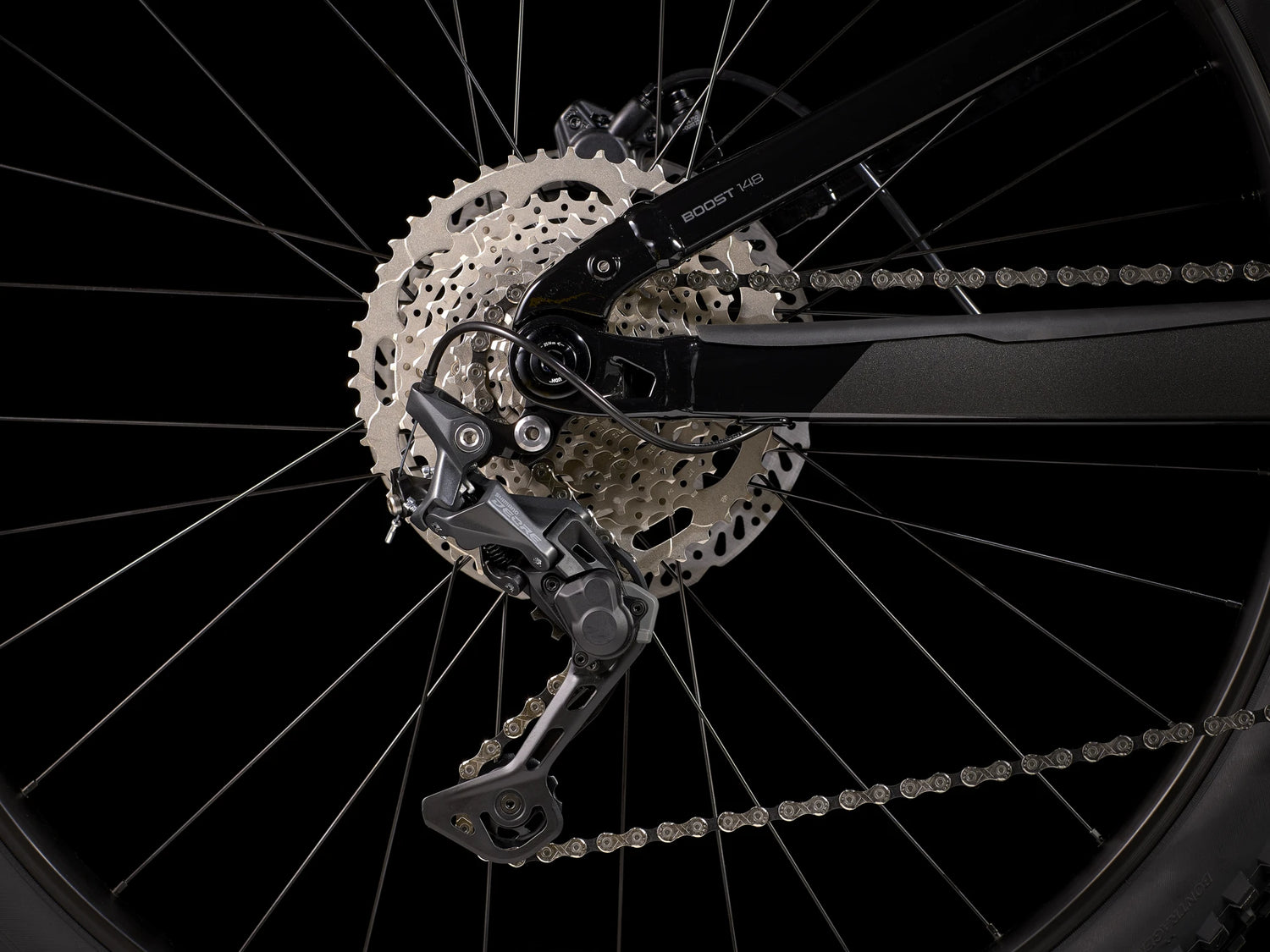

Rear derailleur	Shimano Deore M5120, long cage
Crank	FSA Bosch CK-220, 36T ring, 165 mm length
Chainring	FSA, 36T, steel
Cassette	Shimano Deore M4100, 11-46, 10-speed
Chain	KMC X10, 10-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x: 46T, min 34T

Components

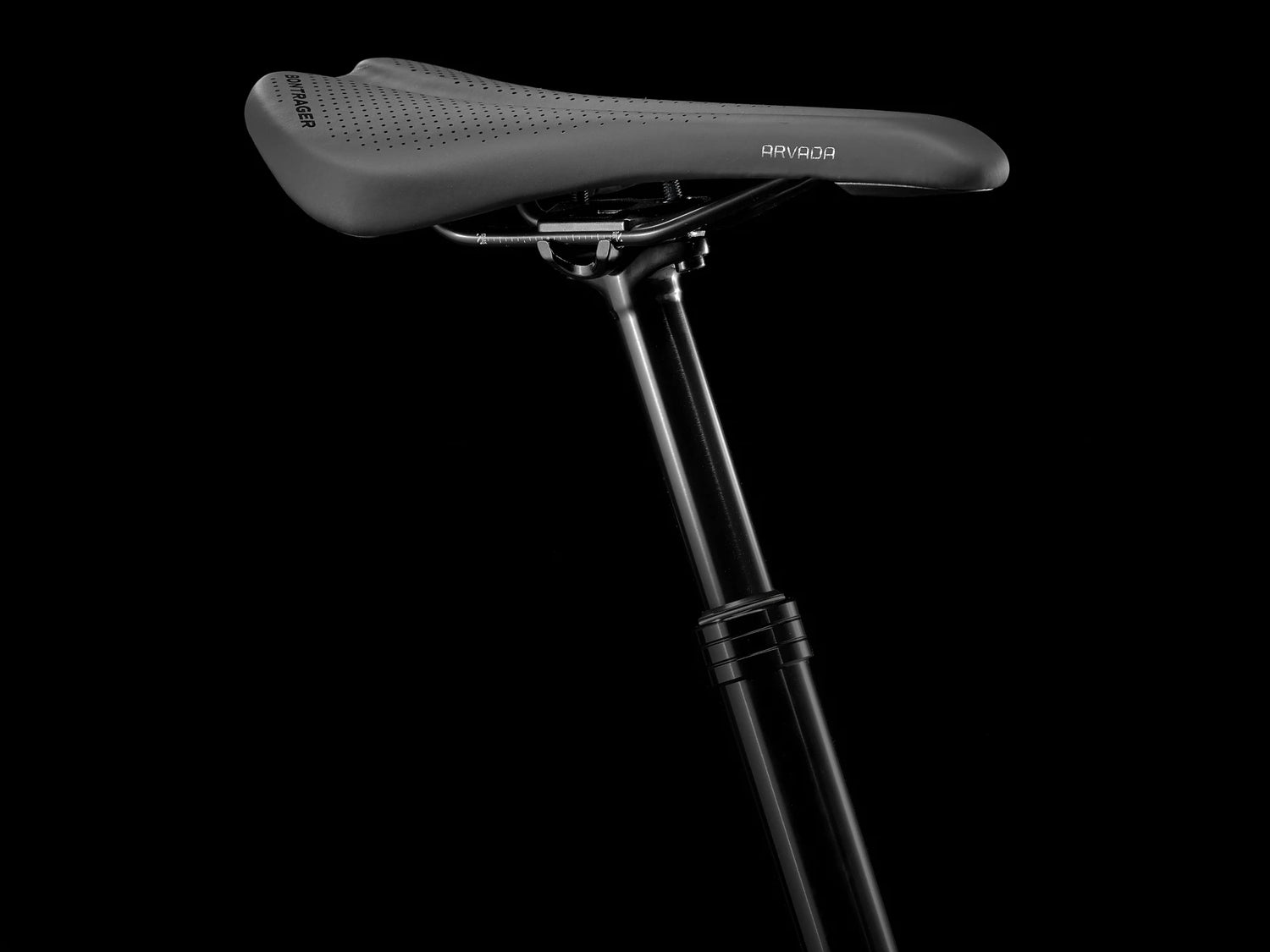

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: S , M TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
*Seatpost	Size: L , XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
*Stem	Size: M , L , XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set	FSA IS-2

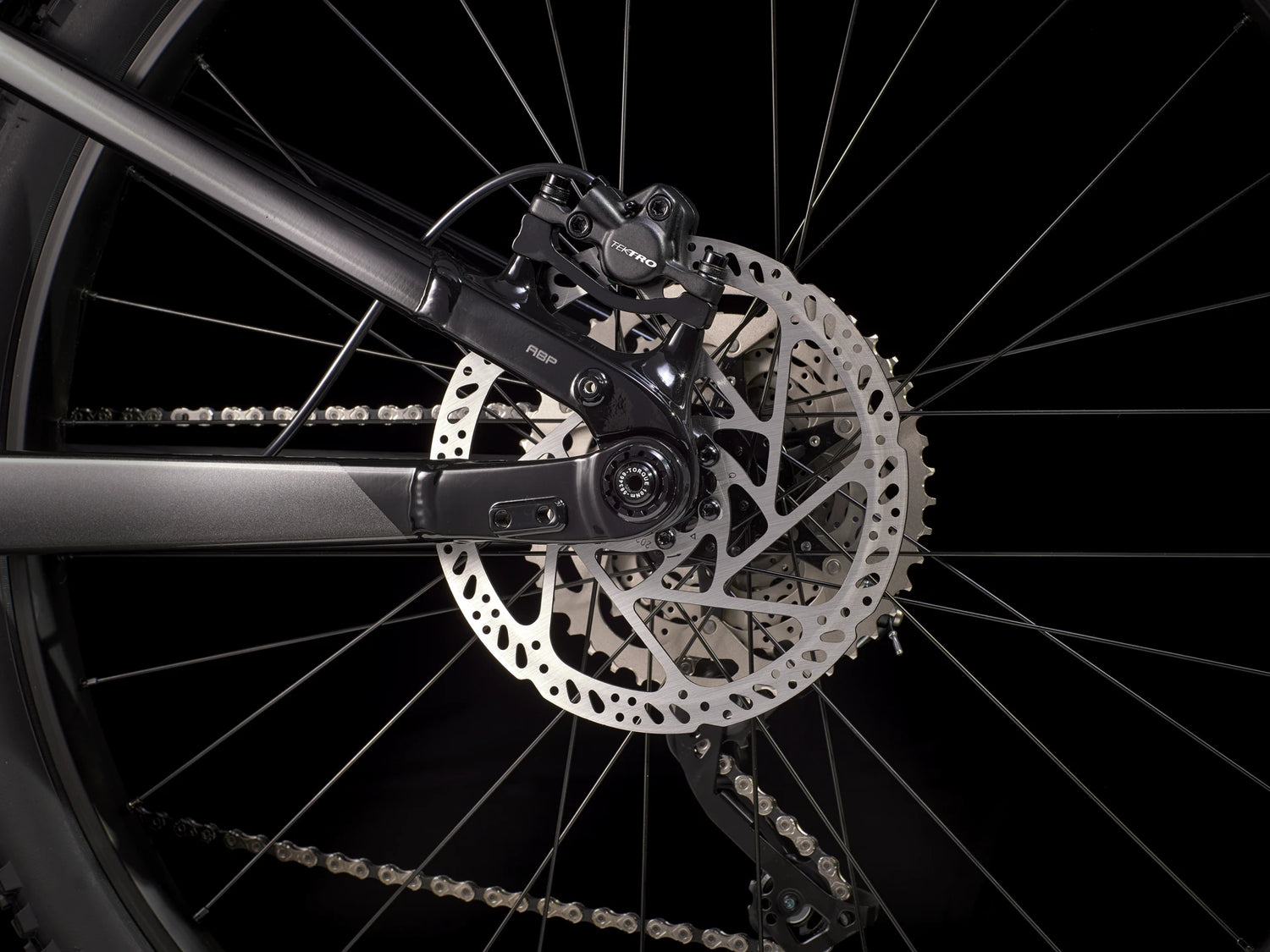

Brake rotor	Tektro, 6-bolt, 203 mm
Brake Set	Tektro HD-M275 hydraulic disc
Rotor size	Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories

Mudguard	Trek Powerfly 29" custom fender

Weight

Weight	M - 24.64 kg / 54.33 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
